2HP LEESON 1165RPM 184T TEFC 3PH BRAKE MOTOR G131620

Catalog Number:  G131620.00
Description:  2HP,1765RPM,184T,TEFC,3PH,60HZ,BRAKE
Ship Weight:  90 lbs.

LEESON Fail-safe positive, stop and hold brakemotors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brakemotors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor.

Volts 208-230 Volts 460 Volts
F.L. Amps 7.4-7.2 F.L. Amps 3.6 F.L. Amps
S. F Amps 8-7.8 S. F Amps 3.9 S. F Amps
RPM 1200 Hertz 60
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model # C184T11FB16B
Frame 184T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75%   PF 60
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number CC005A CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 90 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV

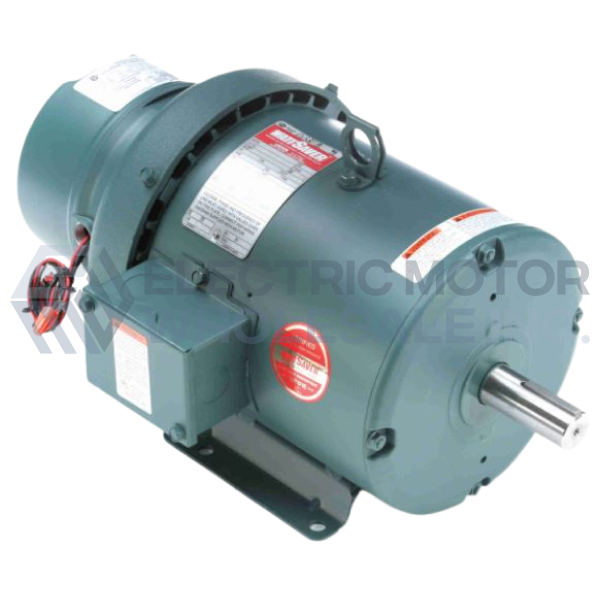

2HP LEESON 1165RPM 184T TEFC 3PH BRAKE MOTOR G131620
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G131620.00
Stock # G131620
