5HP LEESON 1760RPM 184TC TEFC 3PH BRAKE MOTOR G131618.00

LEESON G131618.00 has been superseded by 132478.00

Catalog Number:  G131618.00
Model Number:  C184T17FK19B
Description:  5HP,1760RPM,184TC,TEFC,3PH,60HZ,BRAKE
Ship Weight:  120 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 14-13 F.L. Amps 6.5 F.L. Amps
S. F Amps 16-14.8 S. F Amps 7.4 S. F Amps
RPM 1800 Hertz 60
HP 5 Duty CONTINUOUS TYPE TF
KW 3.70 Model # C184T17FK19B
Frame 184TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 82
UL Yes CSA Yes Bearing OPE 6205
CC Number CC005A CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 120 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID C Rotation REV

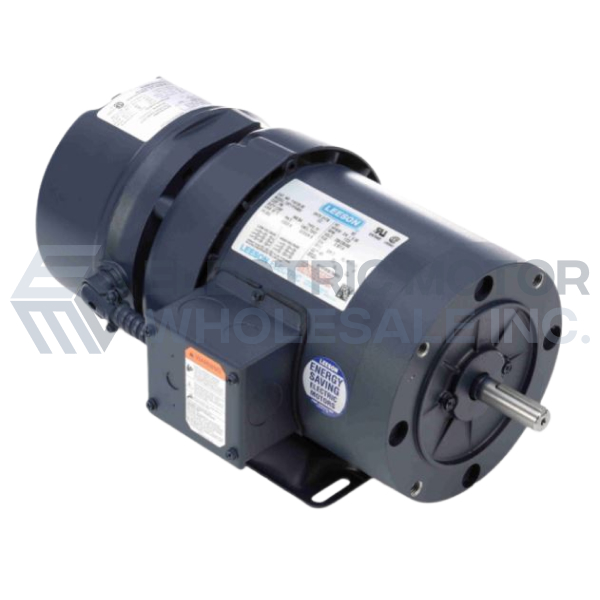

5HP LEESON 1760RPM 184TC TEFC 3PH BRAKE MOTOR G131618.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G131618.00
Stock # G131618
