3HP LEESON 1760RPM 182TC TEFC 3PH BRAKE MOTOR G131617

LEESON G131617.00 has been superseded by 132477.00

Catalog Number:  G131617.00
Description:  3HP,1760RPM,182TC,TEFC,3PH,60HZ,BRAKE
Ship Weight:  82 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 8-8.6 F.L. Amps 4.3 F.L. Amps
S. F Amps 11.2-9.6 S. F Amps 4.8 S. F Amps
RPM 1800 Hertz 60
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24 Model # C182T17FK17B
Frame 182TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 74
UL Yes CSA Yes Bearing OPE 6205
CC Number 005A CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 82 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID C Rotation REV

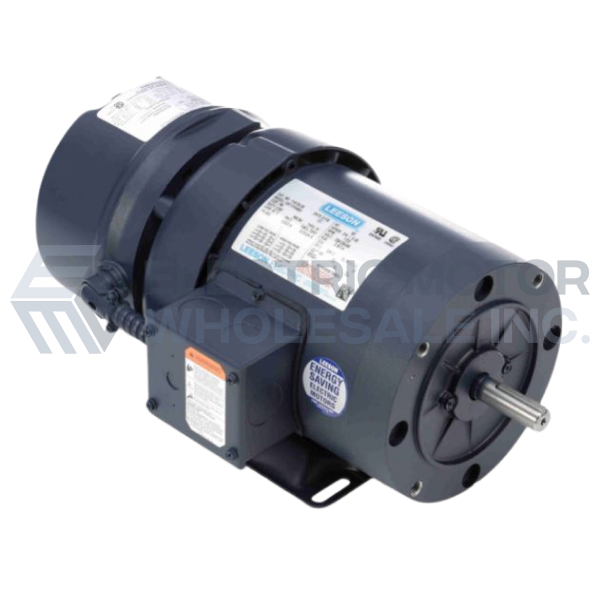

3HP LEESON 1760RPM 182TC TEFC 3PH BRAKE MOTOR G131617
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G131617.00
Stock # G131617
