3HP LEESON 1760RPM 182TC TEFC 3PH MOTOR G131596

LEESON 131596.00 has been Superseded by G131596.00

Catalog Number:  G131596.00
Description:  3HP,1760RPM,182TC,TEFC,3PH,60HZ,WASHGUARD
Ship Weight:  64 lbs.

LEESON WASHGUARD WHITE EPOXY Three Phase Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF



Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 8-8.6 F.L. Amps 4.3 F.L. Amps 7.8/3.9
S. F Amps 11.2-9.6 S. F Amps   S. F Amps 8.4/4.2
RPM 1800 Hertz 60/50
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24 Model # C182T17WC9A
Frame 182TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 74
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number CC005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 64 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081292 Mounting C FACE Rotation REV

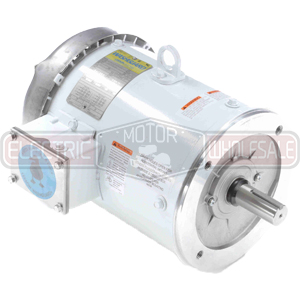

3HP LEESON 1760RPM 182TC TEFC 3PH MOTOR G131596
Click Image to Enlarge
Manufacturer Part Number: G131596.00
Stock # G131596
