5HP LEESON 3510RPM 184TC TEFC 3PH WASHDOWN MOTOR G131595.00

5HP LEESON 3510RPM 184TC TEFC 3PH WASHDOWN MOTOR G131595.00

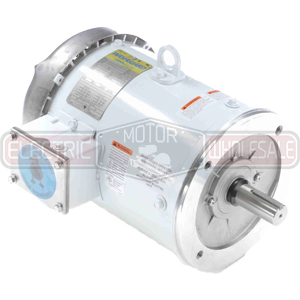

Picture is for reference only.

Part Number:

G131595.00

Model/Spec Number:

C184T34WC7A

Manufacturer:

Leeson Obsolete
G131595.00 LEESON 5HP Three Phase White Duck Washguard Epoxy Motor is designed for enhanced performance in wet, humid areas. Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

Ordering Notes

Suggested item is a functional replacement but may have dimensional or mechanical differences.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

75 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Washdown Epoxy

Output HP:

5

Output KW:

3.7

Output RPM:

3510

Frame Size NEMA:

184TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet

LEESON WASHGUARD WHITE EPOXY Three Phase C-Face Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF
