7.5HP LEESON 3505RPM 184TC TEFC 3PH MOTOR G131594

LEESON 131594.00 has been Superseded by G131594.00

LEESON Catalog Number:  G131594.00
Description:  7.5HP,3505RPM,184TC,TEFC,3PH,60HZ,WASHGUARD
Ship Weight:  101.4 lbs.

This LEESON Motor Can ONLY Ship Ground!
For expedited needs please contact our sales team for freight options.

LEESON WASHGUARD WHITE EPOXY Three Phase C-Face are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF

Volts 208-230 Volts 460 Volts
F.L. Amps 17.6-16.8 F.L. Amps 8.4 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.60 Model # C184T34WC6 A
Frame 180 C Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 94.5
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 101.4 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081292 Mounting C FACE Rotation REV

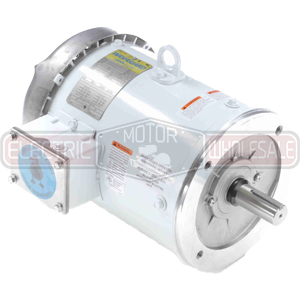

7.5HP LEESON 3505RPM 184TC TEFC 3PH MOTOR G131594
Click Image to Enlarge
Manufacturer Part Number: G131594.00
Stock # G131594
