3HP LEESON 1760RPM 182TC DP 3PH BRAKE MOTOR G131558.00

3HP LEESON 1760RPM 182TC DP 3PH BRAKE MOTOR G131558.00

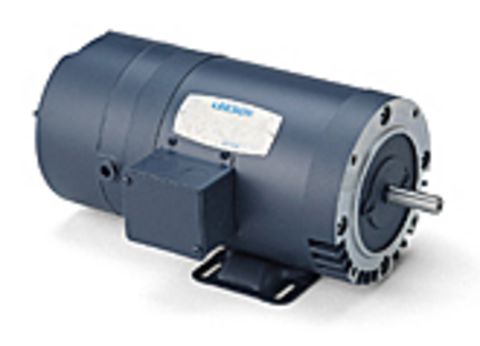

Picture is for reference only.

Part Number:

G131558.00

Model/Spec Number:

C182T17DK14B

Manufacturer:

Leeson Obsolete
G131558.00 LEESON 3HP Three Phase Drip-Proof Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

3

Output KW:

2.2

Output RPM:

1760

Frame Size NEMA:

182TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Connection Diagram

Motor Drawing REF DASH-850
