7.5HP LEESON 3450RPM 184T TEFC 3PH MOTOR G131082.00

7.5HP LEESON 3450RPM 184T TEFC 3PH MOTOR G131082.00

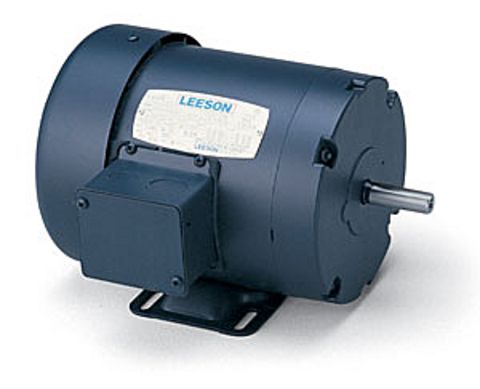

Picture is for reference only.

Part Number:

G131082.00

Model/Spec Number:

C184T34FB14A

Manufacturer:

Leeson Obsolete
G131082.00 LEESON 7.5HP General Purpose Three Phase Motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

100 lbs

Dimensions:

14 x 24 x 14 inches

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

7.5

Output KW:

5.5

Output RPM:

3450

Frame Size NEMA:

184T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Motor Drawing REF DASH-1050

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 17.6-16.8 F.L. Amps 8.4 F.L. Amps
S. F Amps 18.8-18 S. F Amps 9 S. F Amps
RPM 3600 Hertz 60
HP 7.5 Duty CONTINUOUS TYPE TF
KW 5.60 Model Number C184T34FB14A
Frame 184T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 94.5
UL Yes CSA Yes Bearing OPE 6205
CC Number 005A CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 93 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV
