7.5HP LEESON 3600RPM 184TC TEFC 3PH MOTOR G130990
7.5HP LEESON 3600RPM 184TC TEFC 3PH MOTOR G130990

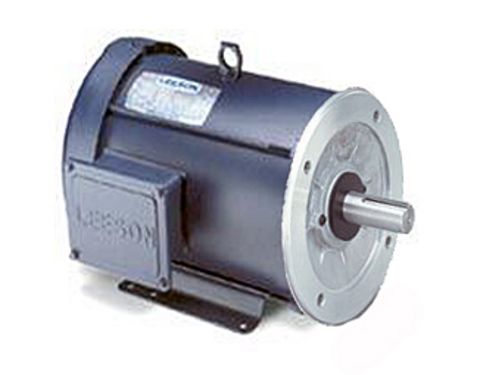

Picture is for reference only.
Part Number:
G130990Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G130990.00Click below to view suggested functional replacement.
Shipping Details
Dimensions:
16 x 24 x 16 inchesTechnical Details
Documentation
Additional Information

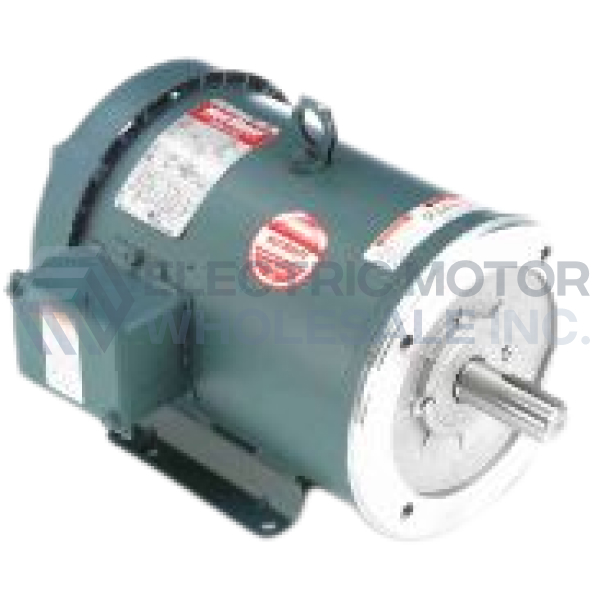

LEESON G130990.00 has been Superseded by 132313.00
| Catalog Number: | 132313.00 |
| Description: | 7.5HP,3600RPM,184TC,TEFC,3PH,60HZ |
| Ship Weight: | 94 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable rolled steel frame
- EPACT Efficiency Rating
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Catalog Number: | G120428.00 |
| Model Number: | C145T11FK5 |
| Horsepower: | 1 |
| Voltage: | 208-230/460 |
| Hertz: | 60 |
| Phase: | 3 |
| Full Load Amps: | 3.6/1.8 |
| Usable at 208 Volts: | YES |
| RPM: | 1140 |
| Frame Size: | G145TC |
| Service Factor: | 1.15 |
| Rating: | 40C AMB-CONT |
| Locked Rotor Code: | L |
| NEMA Design Code: | B |
| Insulation Class: | B3 |
| Full Load Efficiency: | 80 |
| Power Factor: | 65 |
| Enclosure: | TEFC |
| Type: | General Purpose |
| PE Bearing: | 6205 |
| OPE Bearing: | 6203 |
| Protection: | NOT |
| Thermal Protection: | NO |
| Base: | RIGID |
| Mounting: | F1 |
