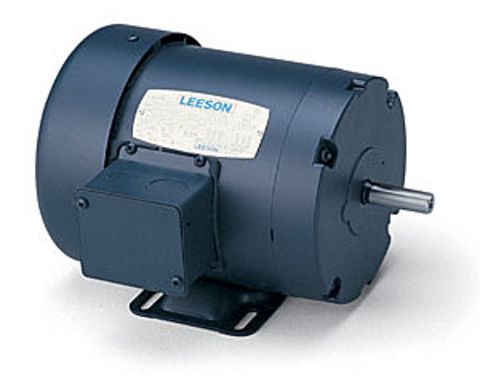

7.5HP LEESON 3450RPM 213T TEFC 3PH MOTOR G130103.00

7.5HP LEESON 3450RPM 213T TEFC 3PH MOTOR G130103.00

Picture is for reference only.

Part Number:

G130103.00

Model/Spec Number:

C213T34FH7A

Manufacturer:

Leeson Obsolete
G130103.00 LEESON 7.5HP General Purpose Three Phase Motor

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

110 lbs

Dimensions:

14 x 26 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

7.5

Output KW:

5.5

Frame Size NEMA:

213t

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Frequency (Hz):

60

Motor Drawing REF DASH-1050

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 17.6-16.8 F.L. Amps 8.4 F.L. Amps
S. F Amps 18.8-18 S. F Amps 9 S. F Amps
RPM 3600 Hertz 60
HP 7.5 Duty CONTINUOUS TYPE TF
KW 5.60 Model Number C213T34FH7A
Frame 213T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 94.5
UL Yes CSA Yes Bearing OPE 6205
CC Number 005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 104 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV
