2HP LEESON 1140RPM 184T TEFC 3PH MOTOR G130016.00
2HP LEESON 1140RPM 184T TEFC 3PH MOTOR G130016.00

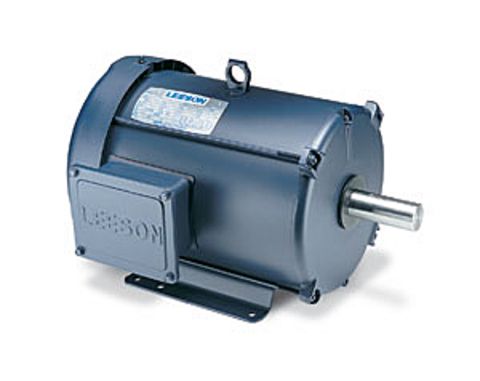

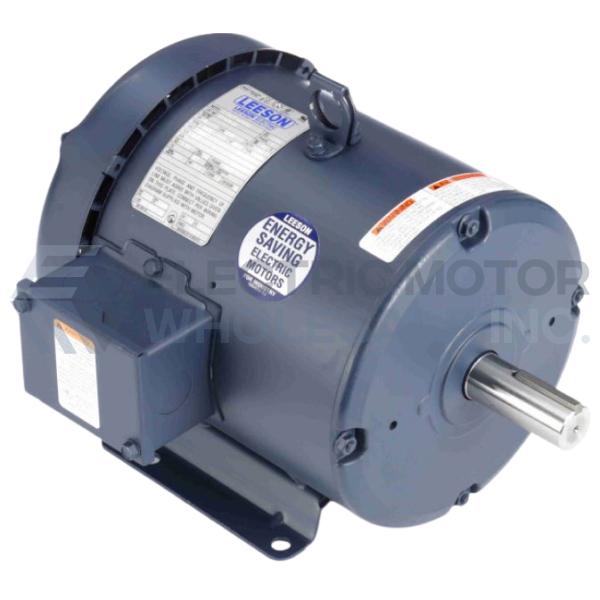

Picture is for reference only.
Part Number:
G130016.00Model/Spec Number:
C184T11FB10DManufacturer:
Leeson ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
90 lbsDimensions:
13 x 22 x 13 inchesHS Code:
8501.52.4000Technical Details
Specifications
Brand: | Leeson |
Application: | General Purpose |
Output HP: | 2 |
Output KW: | 1.5 |
Output RPM: | 1140 |
Frame Size NEMA: | 184T |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP43 |
Voltage: | 208-230/460 |
Documentation
Additional Information
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 7.4-7.2 | F.L. Amps | 3.6 | F.L. Amps | |
| S. F Amps | 8-7.8 | S. F Amps | 3.9 | S. F Amps | |
| RPM | 1200 | Hertz | 60 | ||
| HP | 2 | Duty | CONTINUOUS | TYPE | TF |
| KW | 1.49 | Model Number | C184T11FB10D | ||
| Frame | 184T | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | L |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 86.5 | Eff 75% | PF | 60 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6205 |
| CC Number | 005A | CE | Yes | Bearing PE | 6206 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 90 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 081284 | Mounting | RIGID | Rotation | REV |
