1.5HP LEESON 1170RPM 182T TEFC 3PH MOTOR G130015.00

1.5HP LEESON 1170RPM 182T TEFC 3PH MOTOR G130015.00

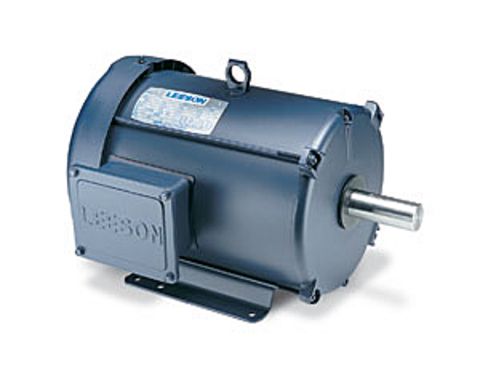

Picture is for reference only.

Part Number:

G130015.00

Model/Spec Number:

C182T11FB4D

Manufacturer:

Leeson Obsolete
G130015.00 LEESON 1.5HP General Purpose Three Phase Motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

85 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

1170

Frame Size NEMA:

182T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Motor Drawing REF DASH-800

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 5.5-5.4 F.L. Amps 2.7 F.L. Amps
S. F Amps 6.1-6 S. F Amps 3 S. F Amps
RPM 1200 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12 Model Number C182T11FB4D
Frame 182T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75%   PF 60
UL Yes CSA Yes Bearing OPE 6205
CC Number 005A CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 85 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV
