1.5HP LEESON 1740RPM 145TC TEFC 3PH MOTOR G121655

LEESON 121655.00 has been Superseded by G121655.00

LEESON Catalog Number:  G121655.00
Description:  1.5HP,1740RPM,145TC,TEFC,3PH,60HZ,WASHGUARD
Ship Weight:  38 lbs.

LEESON WASHGUARD WHITE EPOXY Three Phase C-Face Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 4.5-4.4 F.L. Amps 2.2 F.L. Amps 3.8/1.9
S. F Amps 4.9-4.8 S. F Amps 2.4 S. F Amps 4/2
RPM 1800 Hertz 60/50
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12 Model # C145T17WC28A
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 76
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 38 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting ROUND Rotation REV

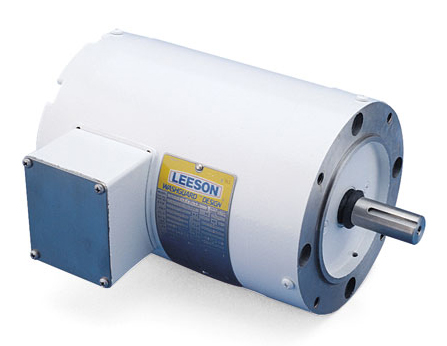

1.5HP LEESON 1740RPM 145TC TEFC 3PH MOTOR G121655
Click Image to Enlarge
Manufacturer Part Number: G121655.00
Stock # G121655
