1HP LEESON 1745RPM 143TC TEFC 3PH WASHDOWN MOTOR G121652.00

1HP LEESON 1745RPM 143TC TEFC 3PH WASHDOWN MOTOR G121652.00

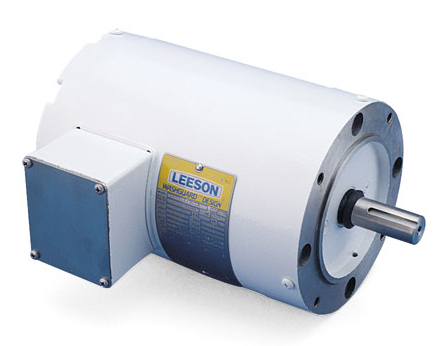

Picture is for reference only.

Part Number:

G121652.00

Model/Spec Number:

C143T17WC8

Manufacturer:

Leeson Obsolete
G121652.00 LEESON 1HP Three Phase White Duck Washguard Epoxy Motor is designed for enhanced performance in wet, humid areas. Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

33 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Washdown Epoxy

Output HP:

1

Output KW:

0.75

Output RPM:

1745

Frame Size NEMA:

143TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Motor Drawing REF DASH-600

Connection Diagram
