2HP LEESON 1740RPM 145JM TEFC 3PH PUMP MOTOR G121583

LEESON 121583.00 has been Superseded by G121583.00

Catalog Number:  G121583.00
Model Number: C145T17WK39
Description:  2HP,1740RPM,145JM,3PH,60HZ,EPOXY WASHGUARD
Ship Weight:  51 lbs.

WASHGUARD WHITE EPOXY: Washdown duty three phase JM Frame pump motors for industrial service. These motors include all of the features of LEESON's White Duck WASHGUARD EPOXY motors with the addition of a JM pump frame shaft for use on closed coupled pumps. For demanding pump applications in wet, humid, or washdown environments.

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6-5.6 F.L. Amps 2.8 F.L. Amps 5.2/2.6
S. F Amps 6.8-6.4 S. F Amps 3.2 S. F Amps 5.8/2.9
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model # C145T17WK39 A
Frame 145JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 75
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 51 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID C Rotation REV

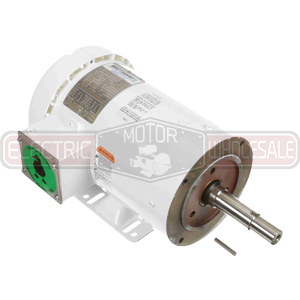

2HP LEESON 1740RPM 145JM TEFC 3PH PUMP MOTOR G121583
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G121583.00
Stock # G121583
