1.5HP LEESON 1740RPM 143JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR G121581.00

1.5HP LEESON 1740RPM 143JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR G121581.00

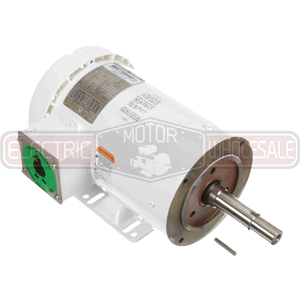

143 FRAME JM PUMP.jpg
Picture is for reference only.

Part Number:

G121581.00

Model/Spec Number:

C145T17WK38A

Manufacturer:

Leeson Obsolete
G121581.00 LEESON 1.5HP Washdown duty three phase JM Frame pump motors for industrial service. These motors include all of the features of LEESON's White Duck WASHGUARD EPOXY motors with the addition of a JM pump frame shaft.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

45 lbs

Dimensions:

12 x 22 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

1.5

Output KW:

1.1

Output RPM:

1740

Frame Size NEMA:

143JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram
