1HP LEESON 1745RPM 143JM TEFC 3PH PUMP MOTOR G121579

LEESON G121579.00 has been superseded by 122186.00

Catalog Number:  G121579.00
Model Number: C143T17WK16
Description:  1HP,1745RPM,143JM,3PH,60HZ,EPOXY WASHGUARD
Ship Weight: 41 lbs.

This LEESON motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

WASHGUARD WHITE EPOXY: Washdown duty three phase JM Frame pump motors for industrial service. These motors include all of the features of LEESON's White Duck WASHGUARD EPOXY motors with the addition of a JM pump frame shaft for use on closed coupled pumps. For demanding pump applications in wet, humid, or washdown environments.

Volts 208-230 Volts 460 Volts
F.L. Amps 3.2-3.1 F.L. Amps 1.55 F.L. Amps
S. F Amps 3.5-3.4 S. F Amps 1.7 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75 Model # C143T17WK16 A
Frame 143JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 73.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID C Rotation REV

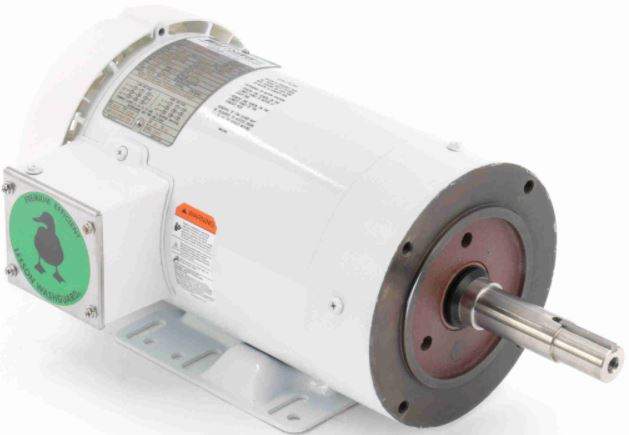

1HP LEESON 1745RPM 143JM TEFC 3PH PUMP MOTOR G121579
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G121579.00
