1HP LEESON 1745RPM 143TC TEFC 3PH BRAKE MOTOR G121557

LEESON G121557.00 has been superseded by 122248.00

Catalog Number:  G121557.00
Description:  1HP,1745RPM,143TC,TEFC,3PH,60HZ,BRAKE
Ship Weight:  43 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 3.2-3.1 F.L. Amps 1.55 F.L. Amps
S. F Amps 3.5-3.4 S. F Amps 1.7 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW .75 Model # C143T17FK16C
Frame 143TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 73.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number 005A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 43 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID C Rotation REV

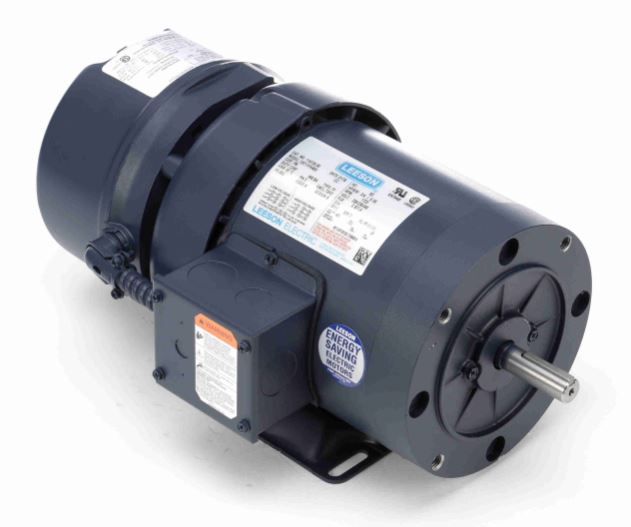

1HP LEESON 1745RPM 143TC TEFC 3PH BRAKE MOTOR G121557
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G121557.00
Stock # G121557
