Home > Electric Motors > Discontinued Electric Motors > LEESON Discontinued AC Motors > 2HP LEESON 1800RPM 145TC TEFC 3PH MOTOR G121527.00

2HP LEESON 1800RPM 145TC TEFC 3PH MOTOR G121527.00

LEESON G121527.00 has been Superseded by 122204.00

Catalog Number:  G121527.00
Model Number:  CZ145T17WC40
Description:  2HP,1800RPM,145TC,TEFC,3PH,PREMIUM SST
Ship Weight:  60 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6-5.6 F.L. Amps 2.8 F.L. Amps 5.2/2.6
S. F Amps 6.8-6.4 S. F Amps 3.2 S. F Amps 5.8/2.9
RPM 1800 Hertz 60/50
KW 1.49 Model Number CZ145T17WC40A
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 75
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number   CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 52 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081120 Mounting C FACE Rotation REV

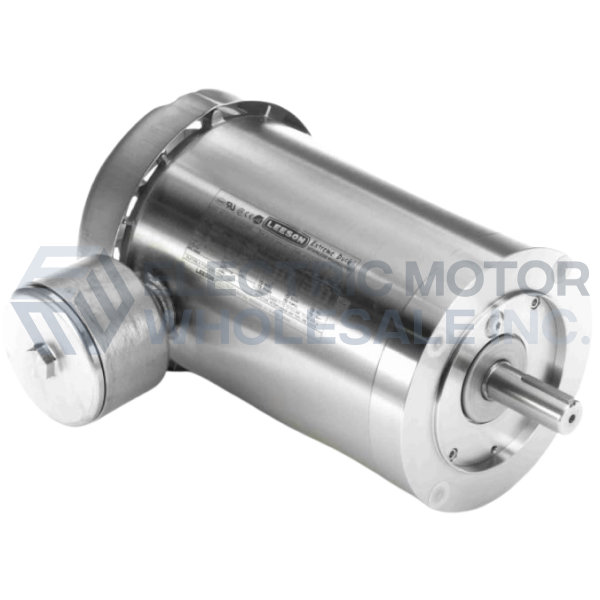

2HP LEESON 1800RPM 145TC TEFC 3PH MOTOR G121527.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G121527.00
Stock # G121527
