2HP LEESON 3450RPM 145TC TEFC 3PH MOTOR G121510.00

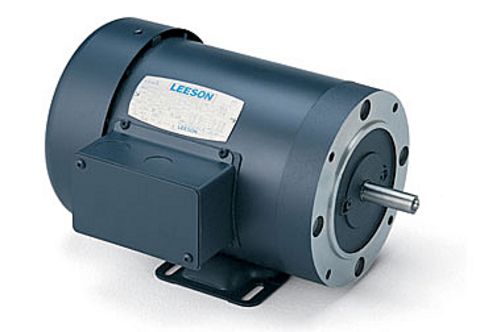

Picture is for reference only.

Part Number:

G121510.00

Model/Spec Number:

C145T34FK29D

Manufacturer:

Leeson Obsolete

G121510.00 LEESON 2HP Three Phase Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

48 lbs

Dimensions:

12 x 22 x 12 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	General Purpose
Output HP:	2
Output KW:	1.5
Output RPM:	3450
Frame Size NEMA:	145TC
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	208-230/460

Documentation

Motor Drawing -700

Connection Diagram

Additional Information

Volts	208-230	Volts	460	Volts
F.L. Amps	5.6-5.2	F.L. Amps	2.6	F.L. Amps
S. F Amps	6.4-5.8	S. F Amps	2.9	S. F Amps
RPM	3600	Hertz	60
HP	2	Duty	CONTINUOUS	TYPE	TF
KW	1.49	Model Number	C145T34FK29D
Frame	145TC	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	L
Insul Class	B	Protection	NOT	Therm.Prot.
Eff 100%	84	Eff 75%		PF	86
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6203
CC Number	NONE	CE	No	Bearing PE	6205
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	48 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	993500	Mounting	RIGID C	Rotation	REV
