1.5HP LEESON 3450RPM 143TC TEFC 3PH MOTOR G121290
1.5HP LEESON 3450RPM 143TC TEFC 3PH MOTOR G121290

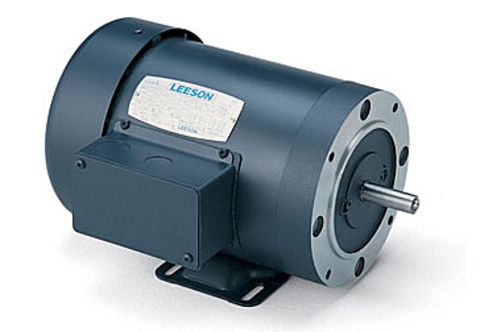

Picture is for reference only.
Part Number:
G121290Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G121290.00This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
13 x 22 x 13 inchesTechnical Details
Documentation
Additional Information
LEESON G121290.00 has been Superseded by 121672.00
| Catalog Number: | G121290.00 |
| Description: | 1.5HP,3450RPM,143TC,TEFC,3PH,60HZ |
| Ship Weight: | 30 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable rolled steel frame
- High-quality ball bearings
- Easy-to-read nameplate
- Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 4.4-4 | F.L. Amps | 2 | F.L. Amps | |
| S. F Amps | 5-4.6 | S. F Amps | 2.3 | S. F Amps | |
| RPM | 3600 | Hertz | 60 | ||
| HP | 1 1/2 | Duty | CONTINUOUS | TYPE | TF |
| KW | 1.12 | Model Number | C143T34FK8D | ||
| Frame | 143TC | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | L |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 82.5 | Eff 75% | PF | 82 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | NONE | CE | Yes | Bearing PE | 6205 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 30 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 993500 | Mounting | RIGID C | Rotation | REV |
