2HP LEESON 1745RPM 145TC TEFC 3PH BRAKE MOTOR G121052.00

LEESON G121052.00 has been superseded by 122250.00

Catalog Number:  G121052.00
Model Number:  C145T17FK42
Description:  2HP,1745RPM,145TC,TEFC,3PH,60HZ,BRAKE
Ship Weight:  60 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6-5.6 F.L. Amps 2.8 F.L. Amps 5.2/2.6
S. F Amps 6.8-6.4 S. F Amps 3.2 S. F Amps 5.8/2.9
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model # C145T17FK42D
Frame 145 C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 75
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 60 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID C Rotation REV

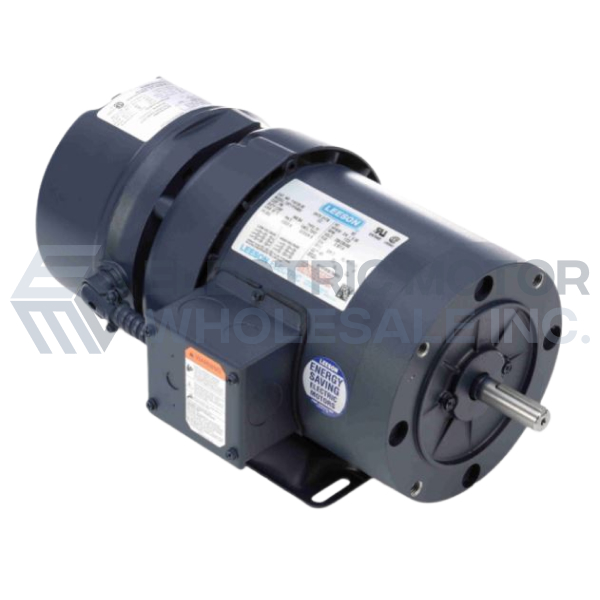

2HP LEESON 1745RPM 145TC TEFC 3PH BRAKE MOTOR G121052.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G121052.00
Stock # G121052
