1.5HP LEESON 1740RPM 145TC TEFC 3PH BRAKE MOTOR G121051.00

1.5HP LEESON 1740RPM 145TC TEFC 3PH BRAKE MOTOR G121051.00

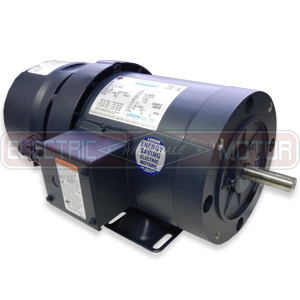

Picture is for reference only.

Part Number:

G121051.00

Model/Spec Number:

C145T17FK41C

Manufacturer:

Leeson Obsolete
G121051.00 LEESON 1.5HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

50 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

1.5

Output KW:

1.1

Output RPM:

1740

Frame Size NEMA:

145TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460
