2HP LEESON 1800RPM 145TC TEFC 3PH MOTOR G120762.00

LEESON G120762.00 has been Superseded by 122182.00

Catalog Number:  G120762.00
Model Number:  C145T17WC27
Description:  2HP,1800RPM,145TC,TEFC,3PH,EPOXY WASHGUARD
Ship Weight:  47 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6-5.6 F.L. Amps 2.8 F.L. Amps 5.2/2.6
S. F Amps 6.8-6.4 S. F Amps 3.2 S. F Amps 5.8/2.9
RPM 1800 Hertz 60/50
KW 1.49 Model # G120762.00
Frame 145 C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 75
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 43 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting C FACE Rotation REV

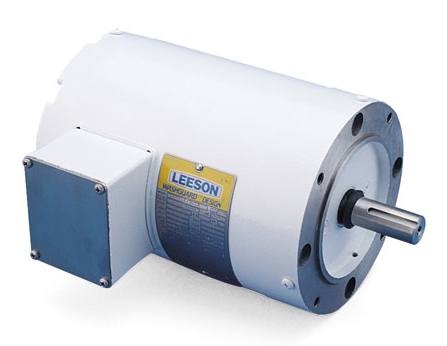

2HP LEESON 1800RPM 145TC TEFC 3PH MOTOR G120762.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G120762.00
Stock # G120762
