2HP LEESON 1740RPM 145T DP 3PH BRAKE MOTOR G120371.00

2HP LEESON 1740RPM 145T DP 3PH BRAKE MOTOR G120371.00

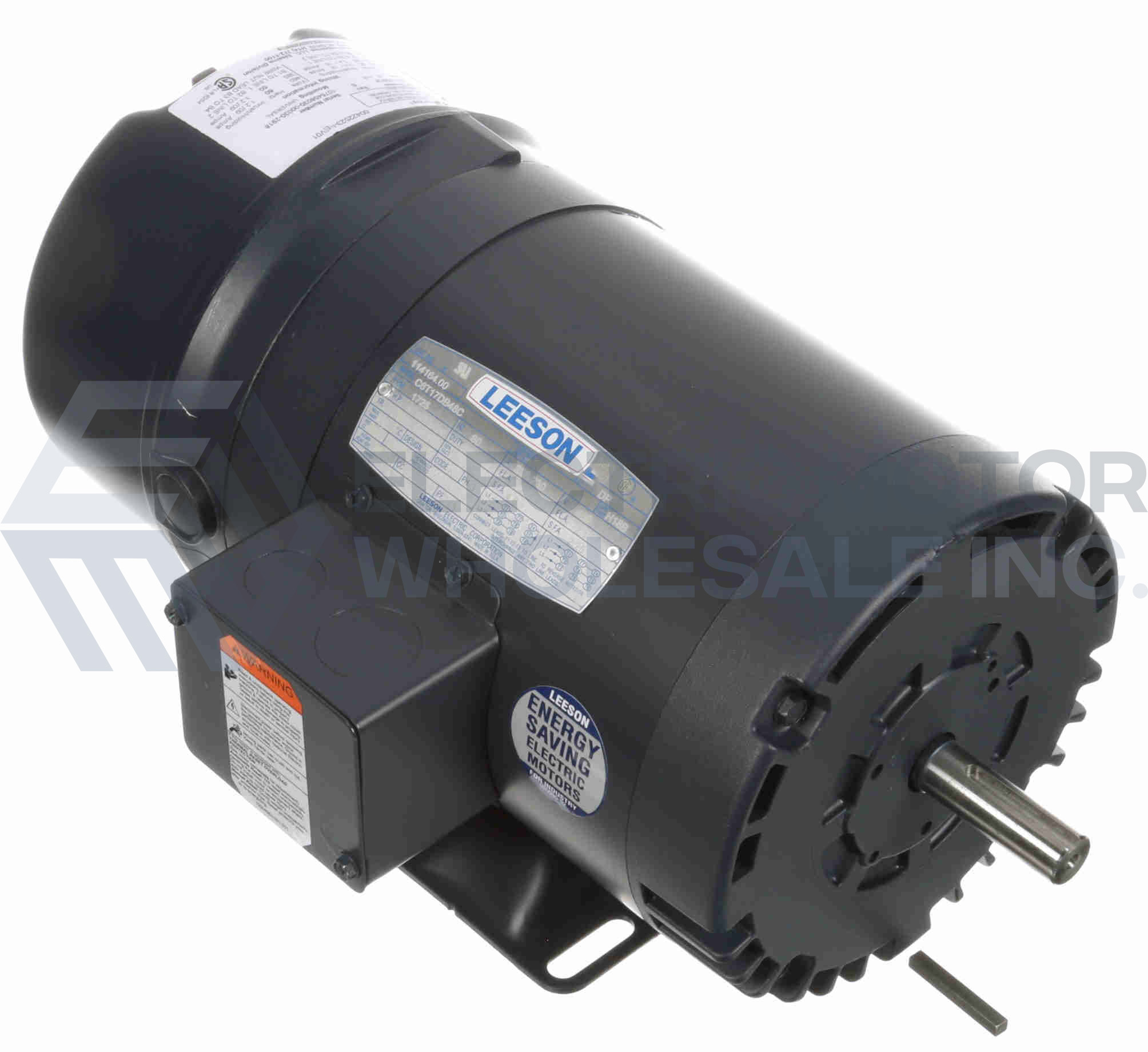

Picture is for reference only.

Part Number:

G120371.00

Model/Spec Number:

C145T17DB65

Manufacturer:

Leeson Obsolete
G120371.00 LEESON 2HP Three Phase Drip-Proof Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

48 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

2

Output KW:

1.5

Output RPM:

1740

Frame Size NEMA:

145T

Mount NEMA:

With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Motor Drawing REF DASH-700

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6.4-6 F.L. Amps 3 F.L. Amps 5.4/2.7
S. F Amps 7-6.4 S. F Amps 3.2 S. F Amps 6.6/3.3
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TD
KW 1.5 Model #
Frame 145T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 77.4
UL Yes CSA Yes Bearing OPE 6203
CC Number 005A CE Yes Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 48 LB Enclosure DP Lubrication POLYREX EM
Nameplate 080885 Mounting RIGID Rotation REV
