2HP LEESON 3450RPM 145T TEFC 3PH MOTOR G120088.00
2HP LEESON 3450RPM 145T TEFC 3PH MOTOR G120088.00

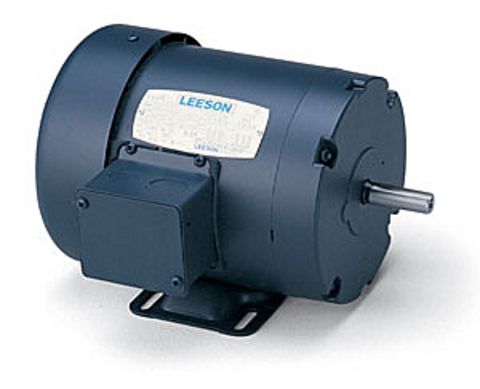

Picture is for reference only.
Part Number:
G120088Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G120088.00Click below to view suggested functional replacement.
Shipping Details
Dimensions:
13 x 22 x 13 inchesTechnical Details
Documentation
Additional Information

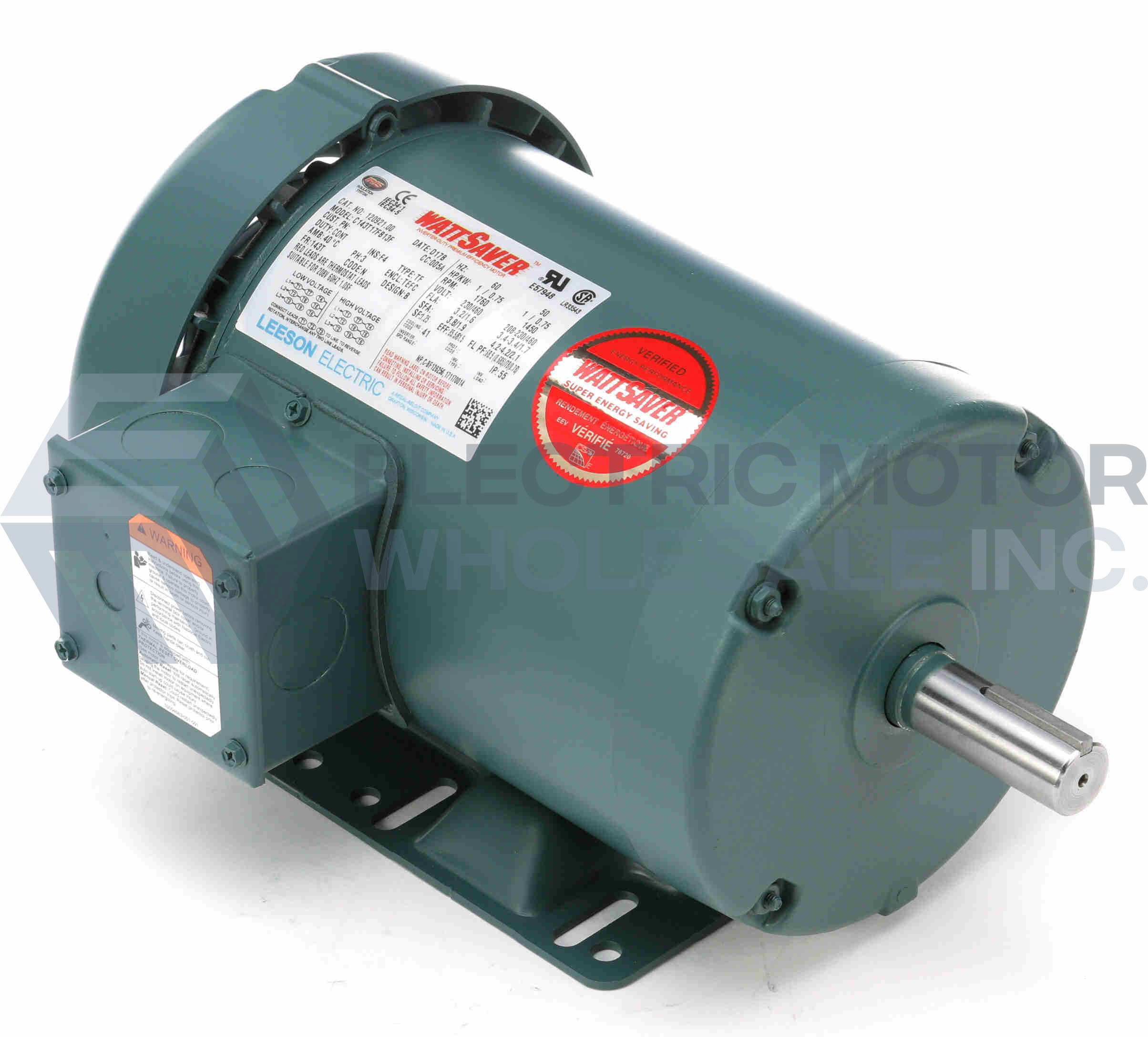

LEESON G120088.00 has been Superseded by 121519.00
| Catalog Number: | G120088.00 |
| Model Number: | C145T34FB26C |
| Description: | 2HP,3450RPM,145T,TEFC,3PH,60HZ |
| Ship Weight: | 40 lbs. |
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 5.6-5.2 | F.L. Amps | 2.6 | F.L. Amps | |
| S. F Amps | 6.4-5.8 | S. F Amps | 2.9 | S. F Amps | |
| RPM | 3600 | Hertz | 60 | ||
| HP | 2 | Duty | CONTINUOUS | TYPE | TF |
| KW | 1.49 | Model Number | C145T34FB26C | ||
| Frame | 145T | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | L |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 84 | Eff 75% | PF | 86 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6203 |
| CC Number | 005A | CE | Yes | Bearing PE | 6205 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 40 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 993500 | Mounting | RIGID | Rotation | REV |
