1.5HP LEESON 3490RPM 145T TEFC 3PH MOTOR G120086

1.5HP LEESON 3490RPM 145T TEFC 3PH MOTOR G120086

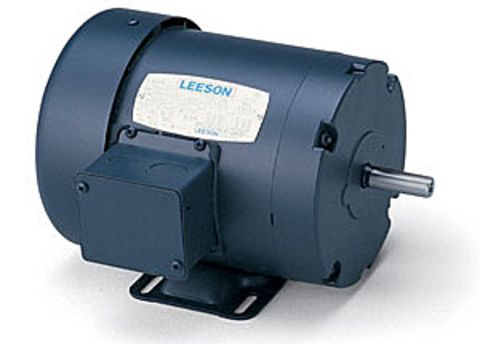

Picture is for reference only.

Part Number:

G120086.00

Model/Spec Number:

C145T34FB25C

Manufacturer:

Leeson Obsolete
G120086.00 LEESON 1.5HP General Purpose three phase motor designed for pumps, fans and other types of three phase equipment.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

50 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.52.4000

UPC:

91720085424

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

3490

Frame Size NEMA:

145T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Motor Drawing REF DASH-650

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 4.4-4 F.L. Amps 2 F.L. Amps
S. F Amps 5-4.6 S. F Amps 2.3 S. F Amps
RPM 3600 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE TF
KW 1.12 Model Number C145T34FB25C
Frame 145T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 82
UL Yes CSA Yes Bearing OPE 6203
CC Number 005A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 35 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
