2HP LEESON 1740RPM 145T TEFC 3PH MOTOR G120016.00

2HP LEESON 1740RPM 145T TEFC 3PH MOTOR G120016.00

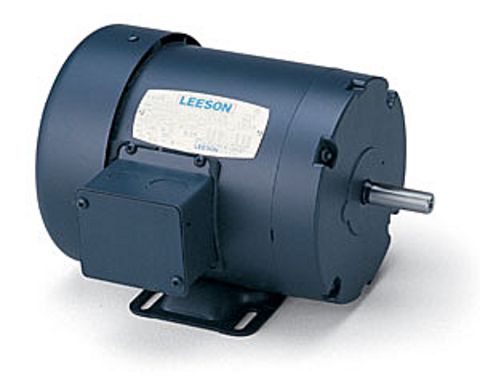

Picture is for reference only.

Part Number:

G120016.00

Model/Spec Number:

C145T17FB60D

Manufacturer:

Leeson Obsolete
LEESON G120016.00 has been Superseded by 120923.00

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

45 lbs

Dimensions:

13 x 22 x 13 inches

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

2

Output KW:

1.5

Output RPM:

1740

Frame Size NEMA:

145T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460//190/380

Motor Drawing REF DASH-800

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6-5.6 F.L. Amps 2.8 F.L. Amps 5.2/2.6
S. F Amps 6.8-6.4 S. F Amps 3.2 S. F Amps 5.8/2.9
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.50 Model Number C145T17FB60D
Frame 145T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 75
UL Yes CSA Yes Bearing OPE 6203
CC Number 005A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 45 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
