1.5HP LEESON 1725RPM 145T TEFC 3PH MOTOR G120015.00

1.5HP LEESON 1725RPM 145T TEFC 3PH MOTOR G120015.00

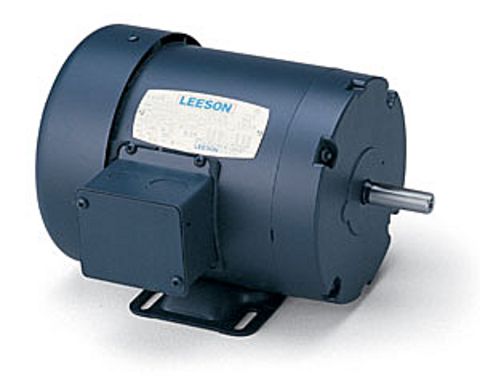

Picture is for reference only.

Part Number:

G120015.00

Model/Spec Number:

C145T17FB59D

Manufacturer:

Leeson Obsolete
G120015.00 LEESON 1.5HP General purpose three phase motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

39 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

1725

Frame Size NEMA:

145T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Motor Drawing REF DASH-650

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 4.5-4.4 F.L. Amps 2.2 F.L. Amps
S. F Amps 4.9-4.8 S. F Amps 2.4 S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12 Model Number C145T17FB59D
Frame 145T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 76
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number 005A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 39 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
