1/3HP LEESON 1800RPM S56 ODP 1PH ECOSAVER MOTOR E100588.00

Catalog Number:  E100588.00 - FREE Ground Shipping in USA
Model Number:  M4K17DH17
Description:  1/3HP,1800RPM,S56,ODP,1PH,60HZ,ECOSAVER
Ship Weight:  21 lbs.

LEESON Single Phase ECOSAVER Motors satisfies the mandated efficiencies of NEMA Premium and carries a three year warranty. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

Features Include:

  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Manual overload protection
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • NEMA Premium efficiency with 3 year warranty
  • Non USA Manufactured, MX
Volts 115   Volts 230   Volts
FL Amps 3.8   FL Amps 1.9   FL Amps
SF Amps 4.6   SF Amps 2.3   SF Amps
RPM 1800   Hertz 60
HP 1/3   Duty CONTINUOUS   Type KD
KW .246   SF 1.35   Phase 1
Frame S56   Design N   KVA Code L
Ambient 40   Protection MANUAL   Therm.Prot. CEG73GA
Insulation Class B   Eff(75%)     PF 79
Eff(100%) 72.4   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 21 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 92005-271   Mounting RIGID   Rotation SELECTIVE CCW
Shaft Diam.     Cust Part No.     Packaging F
      Winding BE484111   Carton Label
      Group 3   Iris
Paint GREEN - LEESON WATTSAVER   Hazardous Location NONE   Test Card

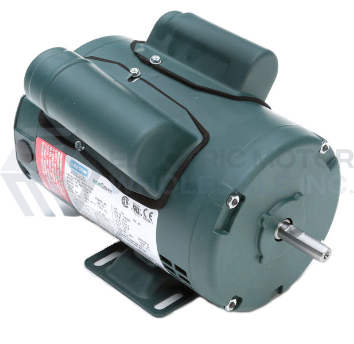

1/3HP LEESON 1800RPM S56 ODP 1PH ECOSAVER MOTOR E100588.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: E100588.00
Stock # E100588
Price: $236.00
Compare At: $595.00
