1/3HP LEESON 1725RPM 48 DP 3PH ECOSAVER MOTOR E100446.00

Catalog Number:  E100446.00 - FREE Ground Shipping in USA
Model Number:  C4T17DB17A
Description:  1/3HP,1725RPM,48,DP,3PH,60/50HZ,ECOSAVER
Ship Weight:  20 lbs.

LEESON ECOSAVER motor carries a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. Drip proof enclosure designed for use where dust and water exposure is moderate.

FEATURES:

  • Durable steel frame
  • 1/2" Keyed output shaft
  • NEMA Premium efficient motor with 3 year warranty
  • Inverter-rated
  • Nameplated for 50 Hz operation
  • Class B insulation systems
  • Shielded ball bearings for direct coupled applications
  • UL recognized and CSA certified
  • Non-USA Manufactured, MX

APPLICATIONS: For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

Volts 230   Volts 460   Volts 190/380
FL Amps 1.2   FL Amps .6   FL Amps 1.4/.7
SF Amps 1.4   SF Amps .7   SF Amps
RPM 1800   Hertz 60/50
HP 1/3   Duty CONTINUOUS   Type TD
KW 0.25   SF 1.35   Phase 3
Frame 48   Design B   KVA Code M
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class B   Eff(75%)     PF 70.6
Eff(100%) 73.4   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 21.75 LB   Enclosure DP   Lubrication MULTEMP SRL
Nameplate 10000418-001-001   Mounting RIGID   Rotation REV
Shaft Diam. 1/2 IN   Cust Part No.     Packaging F
      Winding TE484125   Carton Label
      Group 3   Iris
Paint GREEN (POWDER)   Hazardous Location NONE   Test Card 00

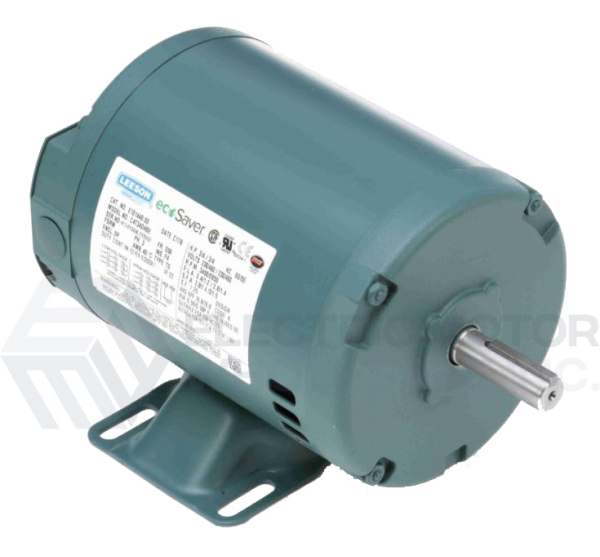

1/3HP LEESON 1725RPM 48 DP 3PH ECOSAVER MOTOR E100446.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: E100446.00
Stock # E100446
Price: $266.00
Compare At: $528.00
