10HP LEESON 1800RPM 215TC TEFC 3PH ULTIMATE-E MOTOR B199058.00

Catalog Number:  B199058.00 - FREE Ground Shipping in USA
Model Number: 215TTFBD6028
Description:  10HP,1800RPM,215TC,TEFC,3PH,60/50HZ,ULTIMATE-E
Ship Weight:  170 lbs.

LEESON ULTIMATE-E motor carries a three-year warranty and exceeds the mandated efficiencies of EPact and NEMA Premium. These premium efficient motors are inverter capable. Suitable for use where water and dust exposure is minimal.

FEATURES:

  • Cast Iron Construction
  • Re-greasable Bearings
  • 1 3/8" Keyed output shaft
  • 1.15 Service Factor
  • Class F insulation
  • This motor is suitable for use at 208VAC
  • Inverter Duty Insulation System
  • UL Recognized and CSA certified
  • NEMA Premium efficiency with 3 year warranty
  • Non-USA Manufactured, CN



APPLICATIONS: pumps, compressors, blowers, fans and other standard industrial applications.

Volts 230   Volts 460   Volts 190/380
FL Amps 25   FL Amps 12.5   FL Amps 23.2/11.6
SF Amps 28.6   SF Amps 14.3   SF Amps 26.2/13.1
RPM 1800   Hertz 60/50
HP 10   Duty CONTINUOUS   Type TF
KW 7.5   SF 1.15   Phase 3
Frame 215TC   Design B   KVA Code H
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class F   Eff(75%)     PF 81.5
Eff(100%) 91.7   CSA Y   Bearing OPE 6206
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6307
CC Number CC005A   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 169 LB   Enclosure TEFC   Lubrication POLYREX EM
Nameplate 8860000B39   Mounting RIGID   Rotation REV
Shaft Diam.     Cust Part No.     Packaging F
      Winding HE31324013   Carton Label
      Group 2   Iris
Paint BLUE (ENAMEL)   Hazardous Location NONE   Test Card

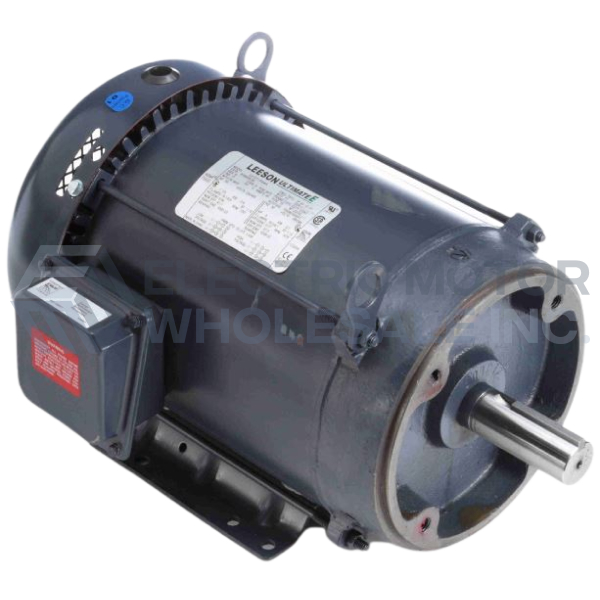

10HP LEESON 1800RPM 215TC TEFC 3PH ULTIMATE-E MOTOR B199058.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: B199058.00
Stock # 215TTFBD6028
Price: $590.00
Compare At: $1,734.00
