1/2HP LEESON 1625RPM 48Y TEAO 1PH MOTOR A099901.00

LEESON M099901.00 has been Superseded by LEESON A099901.00

Catalog Number: A099901.00
Model Number: A4P17NZ142
Description:  1/2HP,1625RPM,48Y,TEAO,1PH,60HZ
Ship Weight: 20 lbs.

APPLICATIONS: Designed for use in agricultural fan applications where variable speed is required.

FEATURES:

  • Steel frame
  • Rigid base
  • Totally enclosed air over
  • 1/2" shaft output diameter
  • Water-tight connection end compartment
  • Locked double sealed ball bearings
  • All angle mounting
  • Extended thru-bolts
  • Shaft seal on output shaft end
  • Automatic lock rotor only
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 5.2 F.L. Amps 2.6 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1625 Hertz 60
HP 1/2 Duty AIROVER TYPE PN
KW 0.37 Model # A4P17NZ142
Frame 48Z Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code B
Insul Class F Protection AUT LCK RTR ONLY Therm.Prot. A-A56227-52
Eff 100% 72 Eff 75%   PF 98
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 20 LB Enclosure TENV Lubrication STANDARD
Nameplate 92005-6 Mounting RIGID-EXTENDED STUDS Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-005109-15

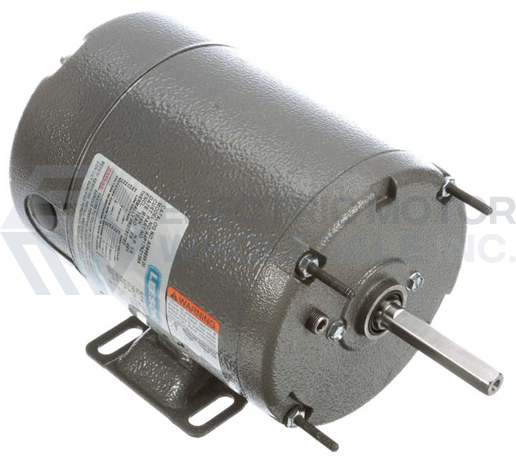

1/2HP LEESON 1625RPM 48Y TEAO 1PH MOTOR A099901.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: A099901.00
Stock # A099901
Price: $219.00
Compare At: $492.00
