1/4HP LEESON 1625RPM 48Y TEAO 1PH MOTOR A099899.00

Catalog Number: A099899.00
Model Number: A4P17NZ139
Description:  1/4HP,1625RPM,48Y,TEAO,1PH,60HZ
Ship Weight: 21 lbs.

APPLICATIONS: Designed for use in agricultural fan applications where variable speed is required.

FEATURES:

  • Steel frame
  • Rigid base
  • Totally enclosed air over
  • 1/2" shaft output diameter
  • Water-tight connection end compartment
  • Locked double sealed ball bearings
  • All angle mounting
  • Extended thru-bolts
  • Shaft seal on output shaft end
  • Automatic lock rotor only
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 3.6 F.L. Amps 1.8 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1625 Hertz 60
HP 1/4 Duty AIROVER TYPE PN
KW 0.19 Model # A4P17NZ139
Frame 48Y Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code F
Insul Class F Protection AUT LCK RTR ONLY Therm.Prot. A-A56227-52
Eff 100% 68 Eff 75%   PF 87.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure TENV Lubrication STANDARD
Nameplate 92005-6 Mounting RIGID Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-005109-15

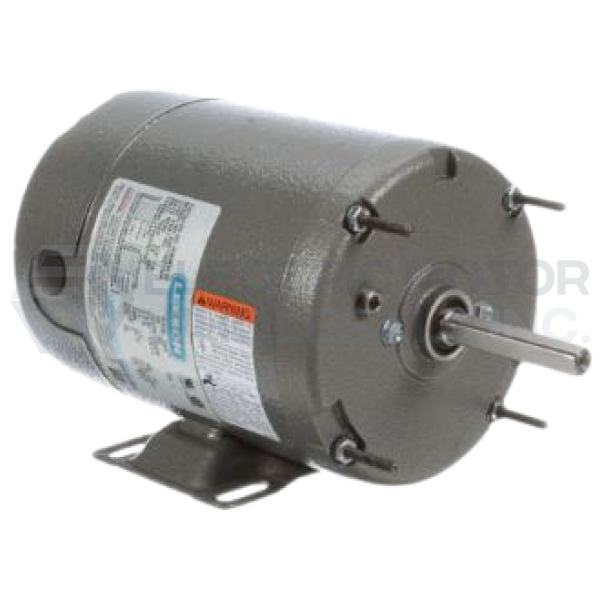

1/4HP LEESON 1625RPM 48Y TEAO 1PH MOTOR A099899.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: A099899.00
Stock # A099899
Price: $164.00
Compare At: $415.00
