1/3HP LEESON 1725RPM 48 DP 1PH MOTOR A090405.00

Catalog Number:  A090405.00 - FREE Ground Shipping in USA
Model Number:  A4K17DR15A
Description:  1/3HP,1725RPM,48,DP,1PH,60HZ,PREMIUM
Ship Weight:  19 lbs.

LEESON Premium Efficiency Belted Fan Motor is designed for use residential or industrial belted fan applications and consumes approximately half the power of a standard fan motor.

FEATURES:

  • Drop-in replacement for most standard belted-fan motors
  • Durable rolled steel frame
  • 1/2" Keyed output shaft
  • Split phase start/Capacitor run
  • Automatic overload protection
  • 1.35 Service Factor
  • Resilient cradle base
  • Specially balanced rotors for quiet operation
  • Extremely quiet running compared to standard fan motors
  • Spade connectors on terminal board
  • Non USA Manufactured, MX
Volts 115 Volts   Volts
F.L. Amps 3.2 F.L. Amps   F.L. Amps
S. F Amps 4.1 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE KD
KW .25 Model # A4K17DR9-A
Frame 48 Serv. Factor 1.35 Phase 1
Max Amb 40 Design NO DESIGN CODE Code K
Insul Class B Protection AUTOMATIC Therm.Prot. MEJ26RX
Eff 100% 75 Eff 75%   PF 89
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 22 LB Enclosure DP Lubrication POLYREX EM
Nameplate   Mounting RESIL Rotation SELECTIVE CCW

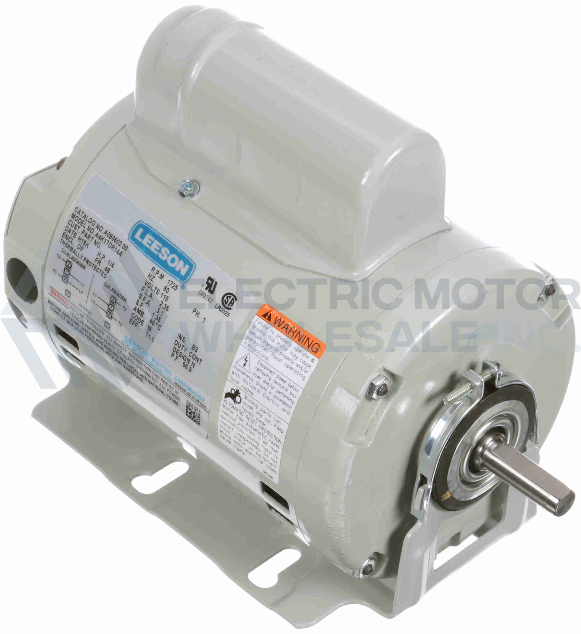

1/3HP LEESON 1725RPM 48 DP 1PH MOTOR A090405.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: A090405.00
Stock # A090405
Price: $159.00
Compare At: $400.00
