5HP LEESON 3510RPM 184TC EPFC 3PH WATTSAVER MOTOR 825127.00

LEESON G850588.00 has been Superseded by 825127.00

Catalog Number:  825127.00 Made in USA
Model Number:  184TTGN16503AA
Description:  5HP,3510RPM,184TC,EPFC,3PH,60HZ
Ship Weight:  168 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Three Phase CAST IRON Explosion Proof For Hazardous Locations Electric Motors: These explosion-proof motors are designed and approved for application in hazardous environments having certain explosive gases or materials present. Features Include:

  • Made in USA
  • 1 1/8" shaft output diameter
  • Cast iron frame
  • Inverter rated
  • This motor is inverter-rated with 10:1 ratio and suitable for use with an inverter.
  • Rugged mechanical construction meeting all requirements for safety. UL and CSA listed.
  • Double shielded, pre-lubricated ball bearings are standard. All motors have inherent automatic overload protection.
  • NEMA 1.5 Service Factor
  • Explosion-proof conduit box and normally closed thermostats included at no extra cost.
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.

MOTOR RATING: (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, CLASS I, GROUPS D
  • DIVISION II, CLASS II, GROUPS F&G - WITH CONDUIT BOX AND NORMALLY CLOSED THERMOSTATS
  • NO LEESON motors are listed for Class I, Group A or B
Volts 230 Volts 460 Volts
F.L. Amps 11.8 F.L. Amps 5.9 F.L. Amps
S. F Amps 13.4 S. F Amps 6.7 S. F Amps
RPM 3600 Hertz 60
HP 5 Duty CONTINUOUS TYPE TX
KW 3.7 Model # 184TTGN16503AA
Frame 184TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 88.5
UL NONE CSA No Bearing OPE 206
CC Number CC005A CE No Bearing PE 207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 130 LB Enclosure EPFC Lubrication STANDARD
Nameplate 92720 Mounting RIGID Rotation REV

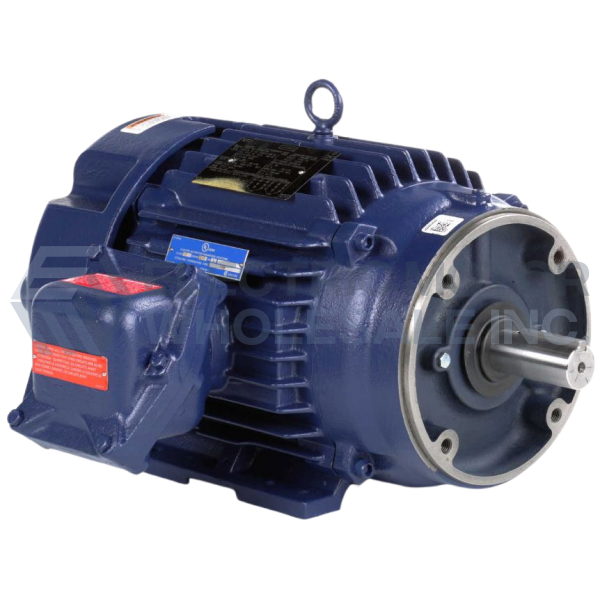

5HP LEESON 3510RPM 184TC EPFC 3PH WATTSAVER MOTOR 825127.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 825127.00
Stock # 825127
Price: $901.00
Compare At: $2,274.00
