3HP LEESON 3510RPM 182TC EPFC 3PH WATTSAVER MOTOR 825125.00

LEESON G850587.00 has been Superseded by 825125.00

Catalog Number:  825125.00 Made in USA
Model Number:  182TTGN16508AA
Description:  3HP,3510RPM,182TC,EPFC,3PH,60HZ,WATTSAVER
Ship Weight:  95 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Designed and approved for application in hazardous environments having certain explosive gases or materials present.

FEATURES:

  • 1 1/8" shaft output diameter
  • Cast Iron frame
  • Inverter rated
  • Premium efficient with 3 year warranty
  • Rugged mechanical construction meeting all requirements for safety. UL and CSA listed.
  • Double shielded, pre-lubricated ball bearings are standard. All motors have inherent automatic overload protection.
  • NEMA 1.5 Service Factor
  • Explosion-proof conduit box and normally closed thermostats included at no extra cost.
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.

MOTOR RATING: (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, CLASS I, GROUPS D
  • DIVISION II, CLASS II, GROUPS F&G - WITH CONDUIT BOX AND NORMALLY CLOSED THERMOSTATS
  • NO LEESON motors are listed for Class I, Group A or B
Volts 230 Volts 460 Volts 190/380
F.L. Amps 7.6 F.L. Amps 3.8 F.L. Amps 6.4/3.2
S. F Amps 8.6 S. F Amps 4.3 S. F Amps 6.6/3.3
RPM 3600 Hertz 60/50
HP 3 Duty CONTINUOUS TYPE TX
KW 2.24 Model # 182TTGN16508AA
Frame 182TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 85
UL NONE CSA No Bearing OPE 206
CC Number CC005A CE No Bearing PE 207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 95 LB Enclosure EPFC Lubrication STANDARD
Nameplate 92720 Mounting RIGID Rotation REV

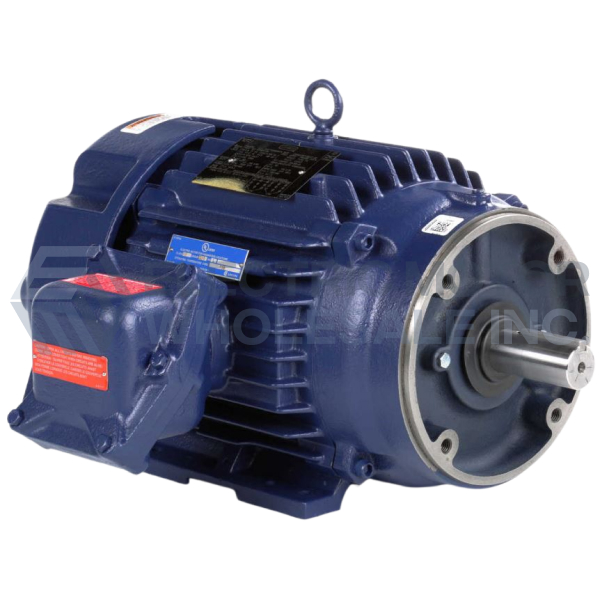

3HP LEESON 3510RPM 182TC EPFC 3PH WATTSAVER MOTOR 825125.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 825125.00
Stock # 825125
Price: $844.00
Compare At: $2,130.00
