75HP LEESON 1800RPM 365T EPFC 3PH MOTOR 825107.00

Catalog Number:  825107.00 - FREE Ground Shipping in USA
Model Number:  365TTGS16541
Description:  75HP,1800RPM,365T,EPFC,3PH,60/50HZ
Ship Weight:  1053 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 6-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON Three Phase Explosion Proof Motor is designed and approved for applications in hazardous environments having certain explosive gases or materials present.

FEATURES:

  • Made in USA
  • Explosion proof motors must be properly nameplated with inverter duty information prior to use on VFD.
  • NEMA Premium efficiency rating with a three year warranty
  • 2-3/8" Keyed output shaft
  • Rugged cast iron frame
  • Meets all UL and CSA safety requirements
  • Double shielded ball bearings
  • Thermal overload protection (TSTATS)
  • NEMA 1.15 Service Factor
  • Explosion-proof conduit box included

MOTOR RATING:  (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, DIVISION II: CLASS I, GROUPS C&D; CLASS II, GROUPS F&G;
  • MEETS TEMPERATURE CODE T3B
  • NO LEESON motors are listed for Class I, Group A or B
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence.
  • Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.
Volts 230 Volts 460 Volts 190/380
F.L. Amps 174 F.L. Amps 87 F.L. Amps 169/84.5
S. F Amps 198 S. F Amps 99 S. F Amps 193/96.5

RPM 1800 Hertz 60/50
HP 75 Duty CONTINUOUS TYPE TX
KW 56
Frame 365T Serv. Factor 1.15 Phase 3
Max Amb 40 Design A Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95.4 Eff 75%   PF 84
UL NONE CSA No Bearing OPE 6312
CC Number CC005A CE No Bearing PE 6314
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 1053 LB Enclosure EPFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

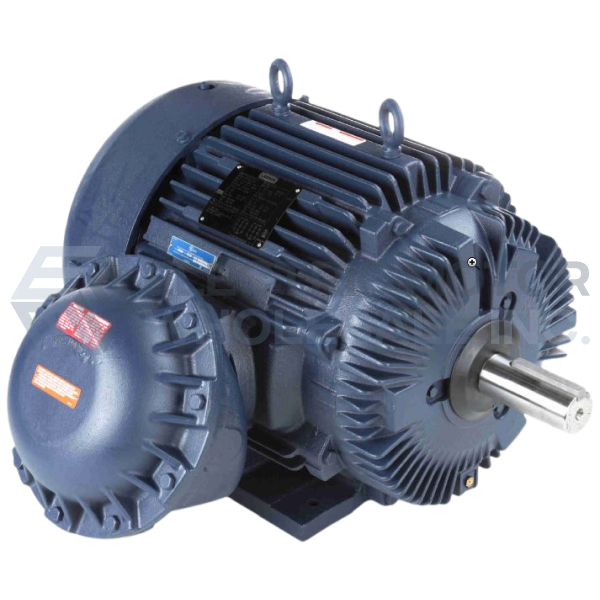

75HP LEESON 1800RPM 365T EPFC 3PH MOTOR 825107.00
Click Image to Enlarge
Manufacturer Part Number: 825107.00
Stock # 825107
Price: $6,863.00
Compare At: $18,082.00
