10HP LEESON 1800RPM 215T EPFC 3PH MOTOR 825091.00

Catalog Number:  825091.00 - FREE Ground Shipping in USA
Model Number:  215TTGN16526
Description:  10HP,1800RPM,215T,EPFC,3PH,60/50HZ
Ship Weight:  273 lbs.

LEESON Three Phase Explosion Proof Motor is designed and approved for applications in hazardous environments having certain explosive gases or materials present.

FEATURES:

  • Made in USA
  • Inverter Rated- Constant Torque 2:1
  • Explosion proof motors must be properly nameplated with inverter duty information prior to use on VFD.
  • NEMA Premium efficiency rating with a three year warranty
  • 1-3/8" Keyed output shaft
  • Rugged cast iron frame
  • Meets all UL and CSA safety requirements
  • Double shielded ball bearings
  • Thermal overload protection (TSTATS)
  • NEMA 1.15 Service Factor
  • Explosion-proof conduit box included

MOTOR RATING:  (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, DIVISION II: CLASS I, GROUPS C&D; CLASS II, GROUPS F&G;
  • MEETS TEMPERATURE CODE T3B
  • NO LEESON motors are listed for Class I, Group A or B
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence.
  • Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.
Volts 230 Volts 460 Volts 190/380
F.L. Amps 25 F.L. Amps 12.5 F.L. Amps 23/11.5
S. F Amps 28 S. F Amps 14 S. F Amps 26/13
RPM 1800 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TX
KW 7.5 Model # 215TTGN16526A
Frame 215T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 82
UL NONE CSA No Bearing OPE 208
CC Number CC005A CE No Bearing PE 307
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 273 LB Enclosure EPFC Lubrication STANDARD
Nameplate 92720 Mounting RIGID Rotation REV
10HP LEESON 1800RPM 215T EPFC 3PH MOTOR 825091.00

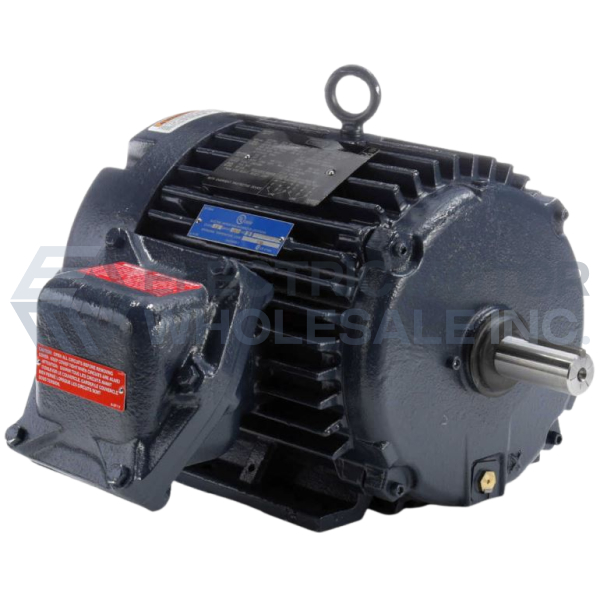

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 825091.00
Stock # 825091
Price: $1,482.00
Compare At: $3,413.00
