30HP LEESON 1800RPM 286TC EPFC 3PH MOTOR 825082.00

Catalog Number:  825082.00 - FREE Ground Shipping in USA
Model Number:  286TTGN16538
Description:  30HP,1800RPM,286TC,EPFC,3PH,EXPLOSION PROOF
Ship Weight:  395 lbs.

LEESON Three Phase Explosion Proof Motor is designed and approved for applications in hazardous environments having certain explosive gases or materials present.

FEATURES:

  • Made in USA
  • Inverter Rated- Constant Torque 10:1
  • Explosion proof motors must be properly nameplated with inverter duty information prior to use on VFD.
  • NEMA Premium efficiency rating with a three year warranty
  • 1-7/8" Keyed output shaft
  • Durable cast iron frame
  • C-face mounting provisions with rigid base
  • Meets all UL and CSA safety requirements
  • Thermal overload protection (TSTATS)
  • Double shielded ball bearings
  • NEMA 1.15 Service Factor
  • Explosion-proof conduit box included

MOTOR RATING:  (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, DIVISION II: CLASS I, GROUPS C&D; CLASS II, GROUPS F&G;
  • MEETS TEMPERATURE CODE T3B
  • NO LEESON motors are listed for Class I, Group A or B
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence.
  • Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.
Volts 230 Volts 460 Volts 190/380
F.L. Amps 73 F.L. Amps 36.5 F.L. Amps 74/37
S. F Amps 80 S. F Amps 40 S. F Amps 84/42
RPM 1800 Hertz 60/50
HP 30 Duty CONTINUOUS TYPE TX
KW 22.4 Model # 286TTGN16538AA
Frame 286TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 94.1 Eff 75%   PF 82
UL NONE CSA No Bearing OPE 6210
CC Number CC005A CE No Bearing PE 6311
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 395 LB Enclosure EPFC Lubrication STANDARD
Nameplate 92720 Mounting RIGID Rotation REV

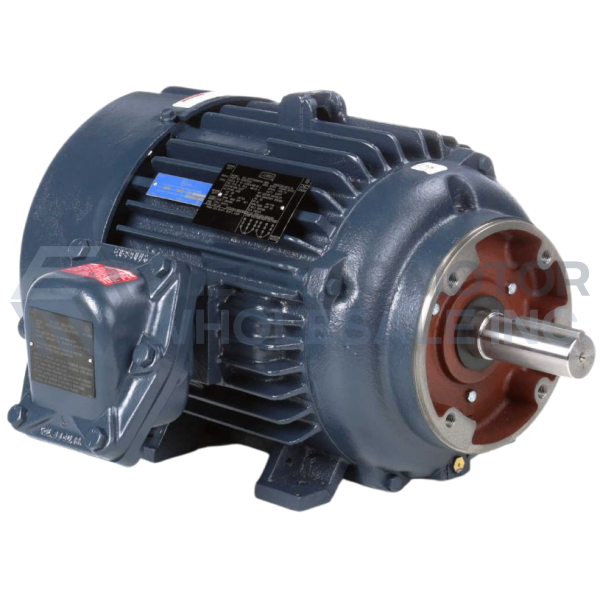

30HP LEESON 1800RPM 286TC EPFC 3PH MOTOR 825082.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 825082.00
Stock # 825082
Price: $2,807.00
Compare At: $7,088.00
