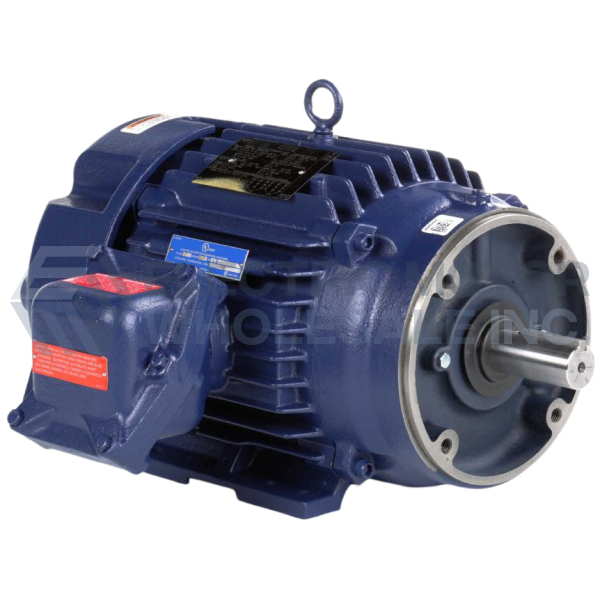

7.5HP LEESON 3530RPM 213TC EPFC 3PH EXPLOSION PROOF MOTOR 825072.00

LEESON Three Phase Explosion Proof Motor is designed and approved for applications in hazardous environments having certain explosive gases or materials present.

FEATURES:

• Explosion proof motors must be properly nameplated with inverter duty information prior to use on VFD.
• 1 3/8" Keyed output shaft
• Meets all UL and CSA safety requirements
• Durable Cast Iron frame
• Thermal overload protection (TSTATS)
• Double shielded ball bearings
• NEMA 1.00 Service Factor
• Explosion-proof conduit box included

MOTOR RATING: (Click on Files for LEESON's Hazardous Ratings Chart)

• DIVISION I, DIVISION II: CLASS I, GROUPS C&D; CLASS II, GROUPS F&G;
• NO LEESON motors are listed for Class I, Group A or B
• Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence.
• Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.
