Electric Motors

/

Discontinued Electric Motors

/

Leeson Discontinued Motors

/

2HP LEESON 1170RPM 184T TENV 3PH IEEE 841 SEVERE DUTY MOTOR 811648.00

2HP LEESON 1170RPM 184T TENV 3PH IEEE 841 SEVERE DUTY MOTOR 811648.00

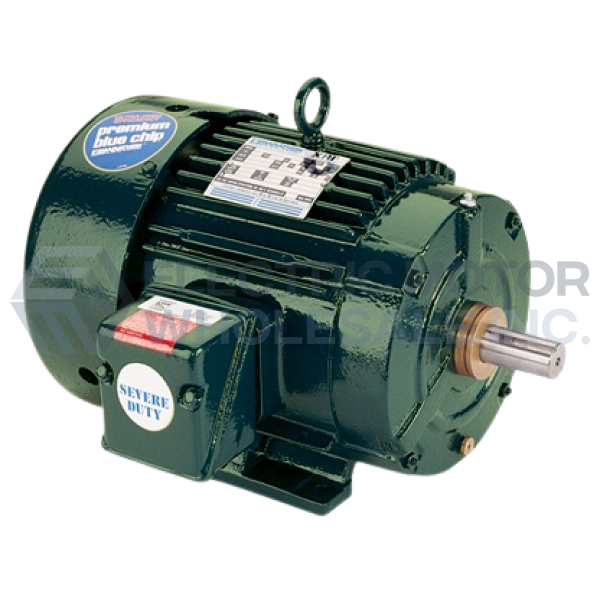

IEEE 841 SEVERE DUTY.jpg
Picture is for reference only.

Part Number:

811648.00

Model/Spec Number:

184THTS9076

Manufacturer:

Leeson Obsolete
811648.00 LEESON 2HP IEEE 841 Premium Severe Duty Motor is designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

75 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

UPC:

691720991954

Technical Details

Brand:

Leeson

Application:

IEEE 841, Severe Duty

Output HP:

2

Output KW:

1.5

Output RPM:

1170

Frame Size NEMA:

184T

Mount NEMA:

With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP56

Voltage:

460

Product Information Packet
