150HP LEESON 1750RPM 445T TEFC 3PH MOTOR 811589

Catalog Number: 811589.00
Model Number: 445THFN19072
Description:  150HP,1750RPM,445T,TEFC,3PH,WATTSAVER,IEEE-841
Ship Weight:  2027 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

LEESON Three Phase Severe Duty IEEE 841 Premium Electric Motors are designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications requiring a premium efficient motor.

Mechanical Protection Features:

  • Inpro Shaft Seals installed
  • Re-greasable bearings by using extended grease tubes.
  • Five-year warranty
  • Two part epoxy painted
  • Brass breather and drain plug

Electrical Performance and Protection Features:

  • Tested to IEEE-841 Standards
  • Actual test and vibration Data supplied with each motor
  • Meets NEMA MG1 - 1.26.6 Waterproof Specification
  • Nameplate stamped to Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, Temperature code T2B
  • Meets NEMA Premium Efficient standards
  • 1.15 Service Factor
  • Class F Insulation System

Standards and Approvals:

  • UL Recognized and CSA Certified
  • Tested to IEEE45 USCG Marine Duty, API RP14F for offshore platforms
  • Meets IP56
Volts 460 Volts   Volts
F.L. Amps 172 F.L. Amps   F.L. Amps
S. F Amps 195 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 150 Duty CONTINUOUS TYPE TW
KW 112
Frame 445T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95.8 Eff 75%   PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6316
CC Number CC005A CE Yes Bearing PE 6318
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 3000 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92722-BM-ABCDGJKLMN-HDKNP-LZ-D-D Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. A-EE7300U-LE

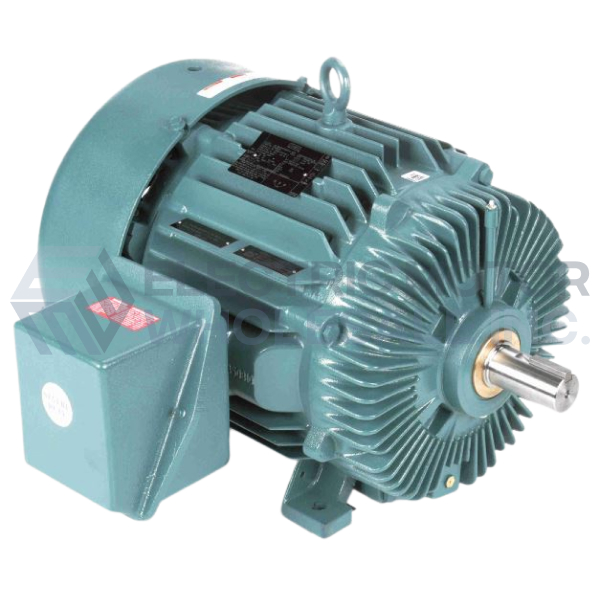

150HP LEESON 1750RPM 445T TEFC 3PH MOTOR 811589
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 811589.00
Stock # 811589
Price: $10,997.00
Compare At: $27,769.00
