100HP LEESON 1780RPM 405T TEFC 3PH MOTOR 811571

Catalog Number:  811571.00
Model Number: 405THFS19060
Description:  100HP,1780RPM,405T,TEFC,3PH,WATTSAVER,IEEE-841
Ship Weight:  1330 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

LEESON Three Phase Severe Duty IEEE 841 Premium Electric Motors are designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications requiring a premium efficient motor.

Mechanical Protection Features:

  • Inpro Shaft Seals installed
  • Re-greasable bearings by using extended grease tubes.
  • Five-year warranty
  • Two part epoxy painted
  • Brass breather and drain plug

Electrical Performance and Protection Features:

  • Tested to IEEE-841 Standards
  • Actual test and vibration Data supplied with each motor
  • Meets NEMA MG1 - 1.26.6 Waterproof Specification
  • Nameplate stamped to Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, Temperature code T2B
  • Meets NEMA Premium Efficient standards
  • 1.15 Service Factor
  • Class F Insulation System

Standards and Approvals:

  • UL Recognized and CSA Certified
  • Tested to IEEE45 USCG Marine Duty, API RP14F for offshore platforms
  • Meets IP56
Volts 460 Volts   Volts
F.L. Amps 113 F.L. Amps   F.L. Amps
S. F Amps 130 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 100 Duty CONTINUOUS TYPE TW
KW 75 Model # 405THFS19060AN
Frame 405T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95.4 Eff 75%   PF 87
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6313
CC Number CC005A CE Yes Bearing PE 6316
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 1330 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

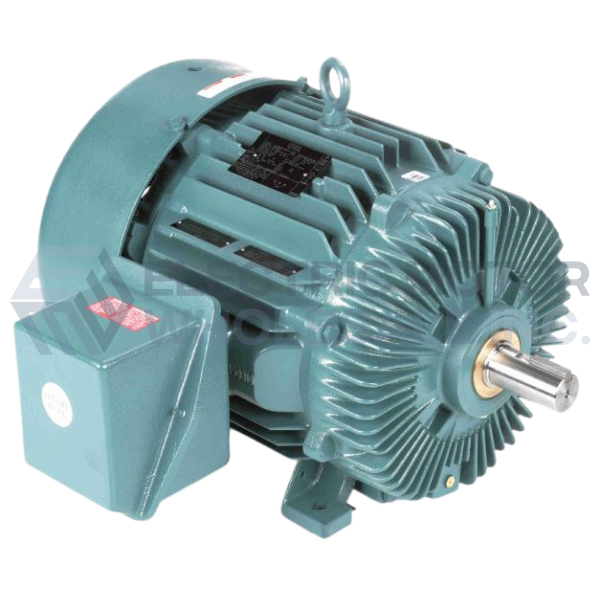

100HP LEESON 1780RPM 405T TEFC 3PH MOTOR 811571
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 811571.00
Stock # 811571
Price: $8,652.00
Compare At: $21,847.00
