60HP LEESON 1770RPM 364T TEFC 3PH MOTOR 811567

Catalog Number:  811567.00
Model Number: 364THFS19047
Description:  60HP,1770RPM,364T,TEFC,3PH,WATTSAVER,IEEE-841
Ship Weight:  1000 lbs.

This LEESON motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

Volts 460 Volts   Volts
F.L. Amps 70 F.L. Amps   F.L. Amps
S. F Amps 80 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 60 Duty CONTINUOUS TYPE TW
KW 45.0 Model # 364THFS19047AN
Frame 364T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95 Eff 75%   PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6312
CC Number CC005A CE Yes Bearing PE 6314
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 1000 LB Enclosure TEFC Lubrication STANDARD
Nameplate 92722-BM-BJLN-HJKNP-K-D-D Mounting RIGID Rotation REV

LEESON Three Phase Severe Duty IEEE 841 Premium Electric Motors are designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications requiring a premium efficient motor.

Mechanical Protection Features:

  • Inpro Shaft Seals installed
  • Re-greasable bearings by using extended grease tubes.
  • Five-year warranty
  • Two part epoxy painted
  • Brass breather and drain plug

Electrical Performance and Protection Features:

  • Tested to IEEE-841 Standards
  • Actual test and vibration Data supplied with each motor
  • Meets NEMA MG1 - 1.26.6 Waterproof Specification
  • Nameplate stamped to Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, Temperature code T2B
  • Meets NEMA Premium Efficient standards
  • 1.15 Service Factor
  • Class F Insulation System

Standards and Approvals:

  • UL Recognized and CSA Certified
  • Tested to IEEE45 USCG Marine Duty, API RP14F for offshore platforms
  • Meets IP56

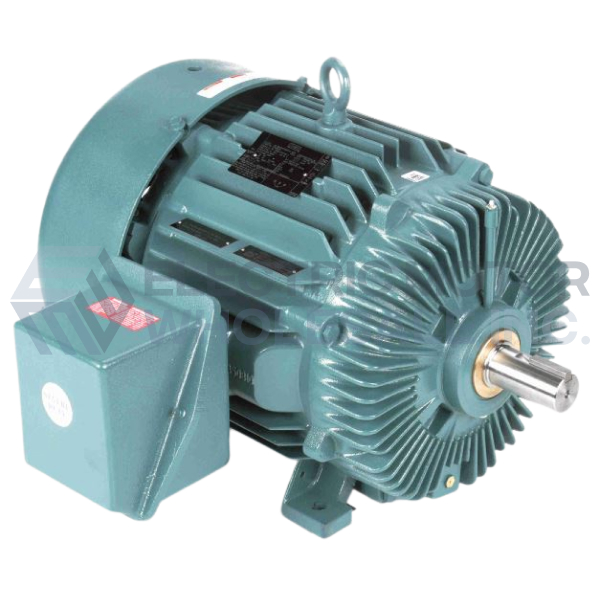

60HP LEESON 1770RPM 364T TEFC 3PH MOTOR 811567
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 811567.00
Stock # 811567
Price: $5,522.00
Compare At: $13,944.00
