40HP LEESON 3550RPM 324TS TEFC 3PH MOTOR 811562

Catalog Number:  811562.00
Model Number: 324TSHFS19007
Description:  40HP,3550RPM,324TS,TEFC,3PH,IEEE 841
Ship Weight:  656 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

LEESON Three Phase Severe Duty IEEE 841 Premium Electric Motors are designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications requiring a premium efficient motor.

Mechanical Protection Features:

  • Inpro Shaft Seals installed
  • Re-greasable bearings by using extended grease tubes.
  • Five-year warranty
  • Two part epoxy painted
  • Brass breather and drain plug

Electrical Performance and Protection Features:

  • Tested to IEEE-841 Standards
  • Actual test and vibration Data supplied with each motor
  • Meets NEMA MG1 - 1.26.6 Waterproof Specification
  • Nameplate stamped to Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, Temperature code T2B
  • Meets NEMA Premium Efficient standards
  • 1.15 Service Factor
  • Class F Insulation System

Standards and Approvals:

  • UL Recognized and CSA Certified
  • Tested to IEEE45 USCG Marine Duty, API RP14F for offshore platforms
  • Meets IP56
Volts 460 Volts   Volts
F.L. Amps 47 F.L. Amps   F.L. Amps
S. F Amps 53 S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 40 Duty CONTINUOUS TYPE TW
KW 30 Model # 324TSHFS19007AN
Frame 324TS Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93.6 Eff 75%   PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 311
CC Number CC005A CE Yes Bearing PE 312
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 656 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

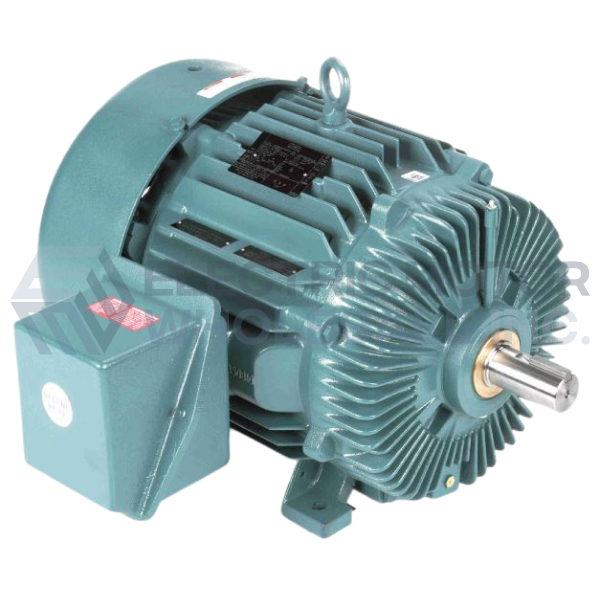

40HP LEESON 3550RPM 324TS TEFC 3PH MOTOR 811562
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 811562.00
Stock # 811562
Price: $3,744.00
Compare At: $9,453.00
