3HP LEESON 1760RPM 182T TENV 3PH MOTOR 811547

Catalog Number:  811547.00
Model Number: 182THTS19041
Description:  3HP,1760RPM,182T,TENV,3PH,IEEE 841
Ship Weight:  100 lbs.

This LINCOLN Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

LEESON Three Phase Severe Duty IEEE 841 Premium Electric Motors are designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications requiring a premium efficient motor.

Mechanical Protection Features:

  • Inpro Shaft Seals installed
  • Re-greasable bearings by using extended grease tubes.
  • Five-year warranty
  • Two part epoxy painted
  • Brass breather and drain plug

Electrical Performance and Protection Features:

  • Tested to IEEE-841 Standards
  • Actual test and vibration Data supplied with each motor
  • Meets NEMA MG1 - 1.26.6 Waterproof Specification
  • Nameplate stamped to Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, Temperature code T2B
  • Meets NEMA Premium Efficient standards
  • 1.15 Service Factor
  • Class F Insulation System

Standards and Approvals:

  • UL Recognized and CSA Certified
  • Tested to IEEE45 USCG Marine Duty, API RP14F for offshore platforms
  • Meets IP56
Volts 460 Volts   Volts
F.L. Amps 4 F.L. Amps   F.L. Amps
S. F Amps 4.4 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 3 Duty CONTINUOUS TYPE TV
KW 2.24 Model # 182THTS19041AA
Frame 182T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75%   PF 80
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 205
CC Number EXEMPT CE Yes Bearing PE 206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 100 LB Enclosure TENV Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

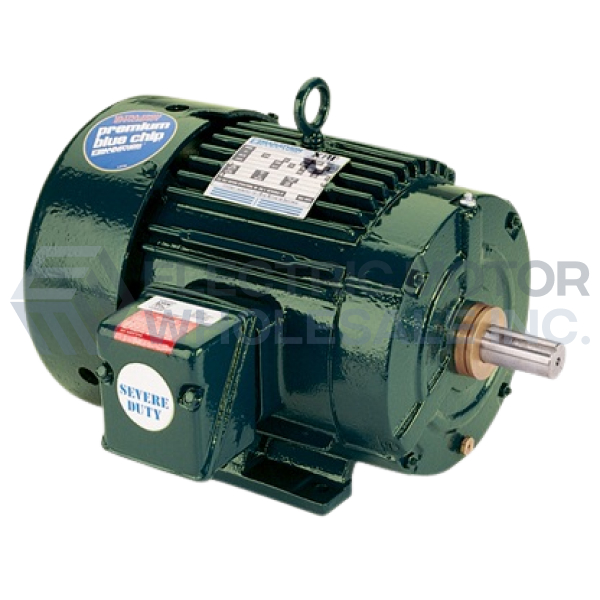

3HP LEESON 1760RPM 182T TENV 3PH MOTOR 811547
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 811547.00
Stock # 811547
Price: $692.00
Compare At: $1,745.00
