2HP LEESON 1800RPM 145T TEFC 3PH MOTOR 811545.00

2HP LEESON 1800RPM 145T TEFC 3PH MOTOR 811545.00

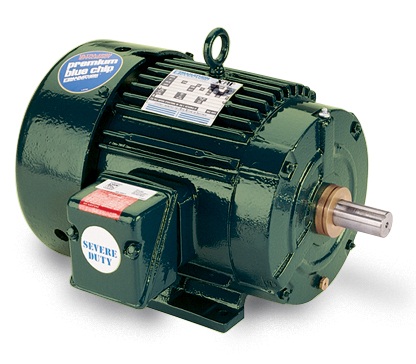

Picture is for reference only.

Part Number:

811545

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

811545.00
811545.00 LEESON 2HP IEEE 841 Premium Severe Duty Motor is designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications.

Ordering Notes

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Dimensions:

12 x 18 x 12 inches

Technical Details

Application:

IEEE 841, Severe Duty

Output HP:

2

Output RPM:

1300-1800 (4P)

Frame Size NEMA:

143-5T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Voltage:

460

Frequency (Hz):

60

Efficiency:

IE3: Premium

Thermal Protection:

None

Motor Drawing REF DASH-625

Connection Diagram

Product Warranty

LEESON 811545.00 has been Superseded by 811644.00

Catalog Number: 811545.00
Model Number: 145THTN9027
Description:  2HP,1800RPM,145T,TEFC,3PH,IEEE 841
Ship Weight:  68 lbs.
Image for 2HP KB Electronics KBDF-27D IP-20 VFD 115/230VAC 1PH INPUT 9675

2HP KB Electronics KBDF-27D IP-20 VFD 115/230VAC 1PH INPUT 9675

Image for 2HP KB Electronics KBAC-27D Analog VFD NEMA4X 115/230VAC Input 9520

2HP KB Electronics KBAC-27D Analog VFD NEMA4X 115/230VAC Input 9520

MSRP: $665.00

Regular Price

$

465

50

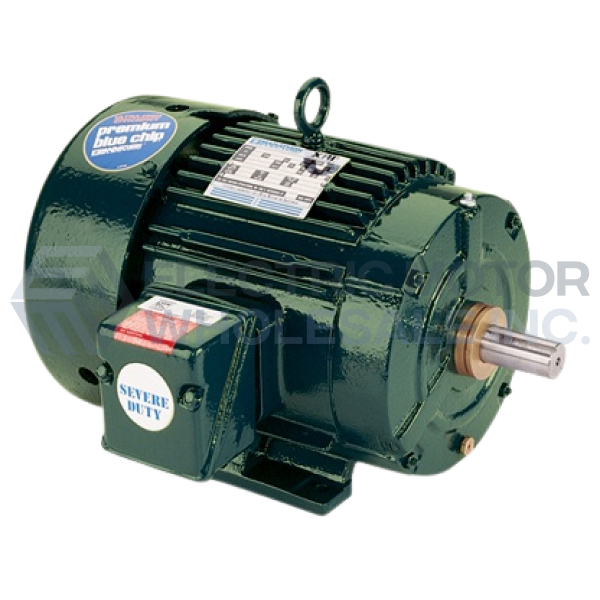

Image for 2HP LEESON 1740RPM 145T 460V TENV 3PH IEEE SEVERE DUTY MOTOR 811644.00
