1.5HP LEESON 1730RPM 145T TEFC 3PH MOTOR 811543

Catalog Number:  811543.00
Model Number:  145THTN9026
Description:  1.5HP,1730RPM,145T,TEFC,3PH,IEEE 841
Ship Weight:  65 lbs.

LEESON Three Phase Severe Duty IEEE 841 Premium Electric Motors are designed for harsh environments that you may find in refineries, above-ground mines, foundries, paper and pulp mills, cement plants or other severe duty applications requiring a premium efficient motor.

Mechanical Protection Features:

  • Inpro Shaft Seals installed
  • Re-greasable bearings by using extended grease tubes.
  • Five-year warranty
  • Two part epoxy painted
  • Brass breather and drain plug

Electrical Performance and Protection Features:

  • Tested to IEEE-841 Standards
  • Actual test and vibration Data supplied with each motor
  • Meets NEMA MG1 - 1.26.6 Waterproof Specification
  • Nameplate stamped to Division 2 CSA certification for hazardous locations, Class 1 Groups A, B, C, D, Temperature code T2B
  • Meets NEMA Premium Efficient standards
  • 1.15 Service Factor
  • Class F Insulation System

Standards and Approvals:

  • UL Recognized and CSA Certified
  • Tested to IEEE45 USCG Marine Duty, API RP14F for offshore platforms
  • Meets IP56

NOTE: Subject to Availability.

Volts 460 Volts   Volts
F.L. Amps 2.2 F.L. Amps   F.L. Amps
S. F Amps 2.4 S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW 1.12 Model # 145THTN9026AA
Frame 145T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 77.7
CC Number EXEMPT CE Yes Bearing PE 205
Load Type   Inverter Type   Speed Range 1.5 X BASE SPEED
Motor Wt. 65 LB Enclosure TENV Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

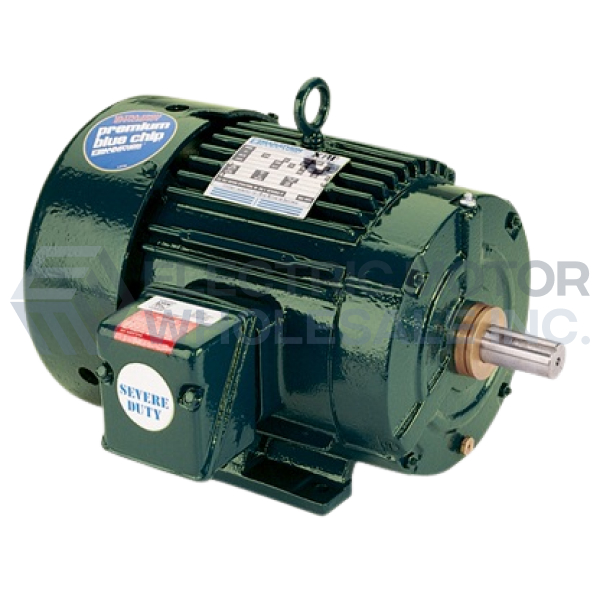

1.5HP LEESON 1730RPM 145T TEFC 3PH MOTOR 811543
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 811543.00
Stock # 811543
