2HP LEESON 1735RPM 145TC TENV 3PH MOTOR 810546

Catalog Number:  810546.00
Description:  2HP,1735RPM,145TC,TENV,3PH,60HZ,INVERTER DUTY
Ship Weight:  70 lbs.

APPLICATIONS: Designed for inverter or vector applications where up to 2000:1 constant torque speed range is required. Typical uses include, material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps, compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

FEATURES:

  • Cast Iron Frame
  • Class H inverter-rated IRIS insulation system
  • Constant torque operation from 0 to base RPM rating on Vector Drives
  • Constant HP operation to twice base RPM rating for 143T-256T frame, 1.5 x base RPM for all other sizes
  • Designed for optimum performance with IGBT inverters - not for across-the-line starting
  • C-face with rigid base through 100HP
  • Normally closed thermostats (one per phase)
  • Continuous duty at 40*C ambient
  • 1.0 Service Factor (Class "B" rise on TEBC motors)
  • Premium quality, cast iron frame and endbells
  • 284T and larger are blower cooled with a separately powered three-phase blower motor to provide added cooling at low speeds
  • Ball bearings (Roller bearings available 360-frame and larger)
  • Field convertible to F2 mounting
  • Encoder provisions included on opposite drive end
  • Three year warranty
  • Meets NEMA MG1, parts 30 & 31
Volts 230 Volts 460 Volts
F.L. Amps 6 F.L. Amps 3 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE TTS
KW 1.49 Model # 145THTN8045BB
Frame 145TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design A Code M
Insul Class H Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75%   PF 78
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number   CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range 2.0 X BASE SPEED
Motor Wt. 70 LB Enclosure TENV Lubrication STANDARD
Nameplate 92721-BM-L-HJKN-X Mounting RIGID Rotation REV

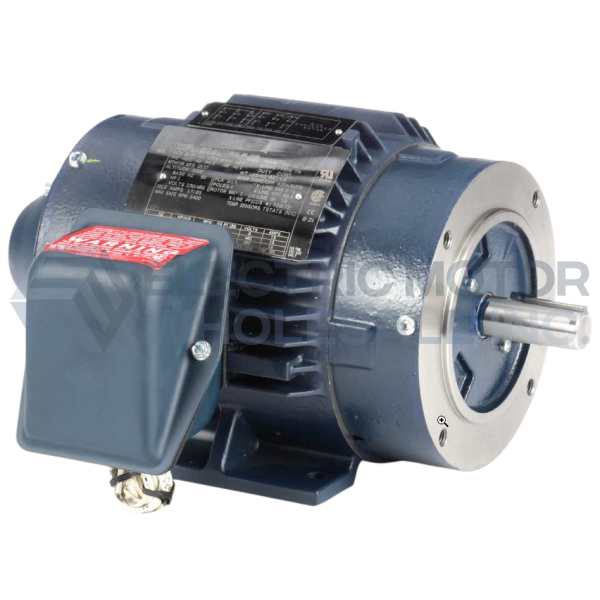

2HP LEESON 1735RPM 145TC TENV 3PH MOTOR 810546
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 810546.00
Stock # 810546
Price: $868.00
Compare At: $2,103.00
